DIGITEN Water Flow Control LCD Display Controller+G3/4" Hall Flow Sensor+DC 12V Power Adapter

DIGITEN

  • $55.99
    Unit price per
  • Save $4.00
Shipping calculated at checkout.


    • DIGITEN DFC15 FLOW LIQUID CONTROLLER OPERATION VIDEO - YouTube

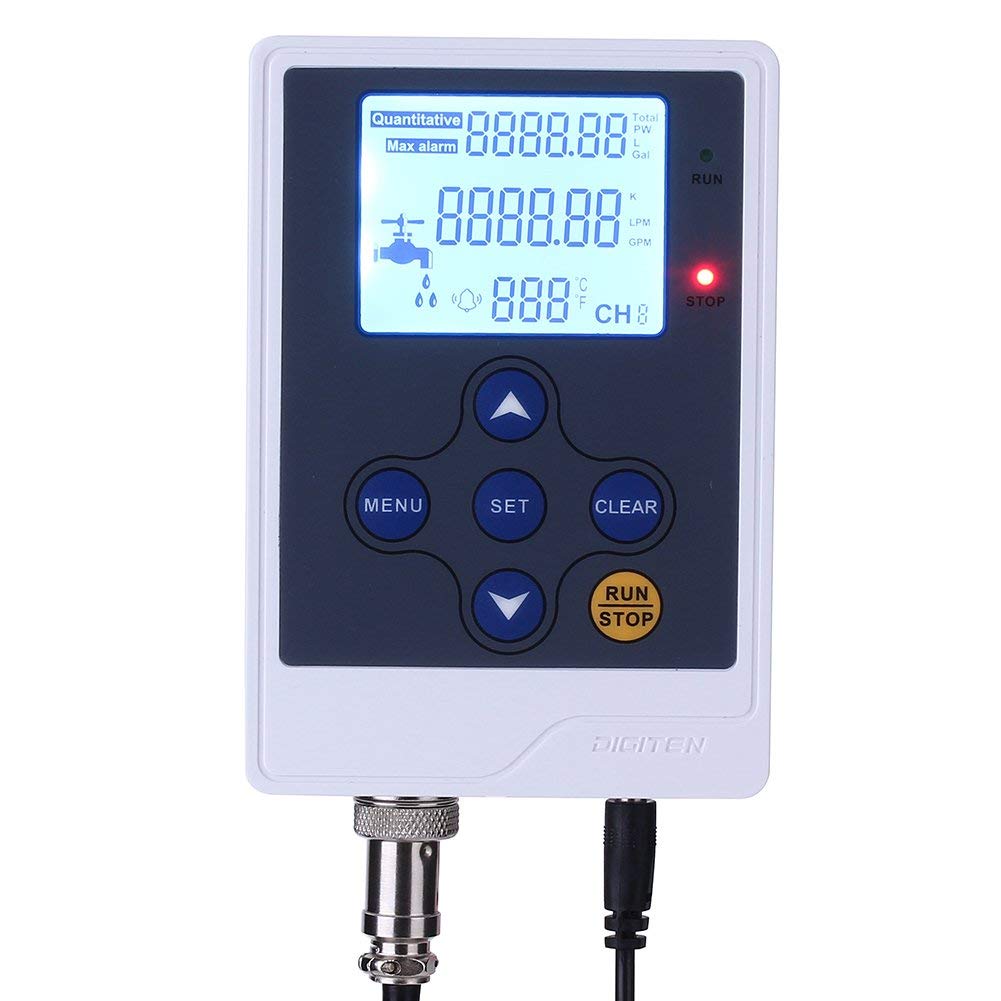

  • ★【Large LCD Screen】: Support reading with Liter or Gallon unit, LPM/GPM switchable. DFC15 will display the flow rate(the REAL-TIME volume of liquid which passes per minute), the flow total volume and sensed temperature clearly.
  • ★【Quantitative Control】: The controller will turn off the solenoid valve automatically when flow reach to the setting value you desire, it's easy to install and control.
  • ★【Work with All Hall Effect Flow Sensor】: It can work with various different flow sensors through adjust the K value. Come with temperature sensor, it can measure liquid temperature.
  • ★【Wide Applications】: Swimming Pool, water dispenser, coffee machine, drip irrigation system, beer brewing, etc.

TECHNICAL SPECIFICATIONS

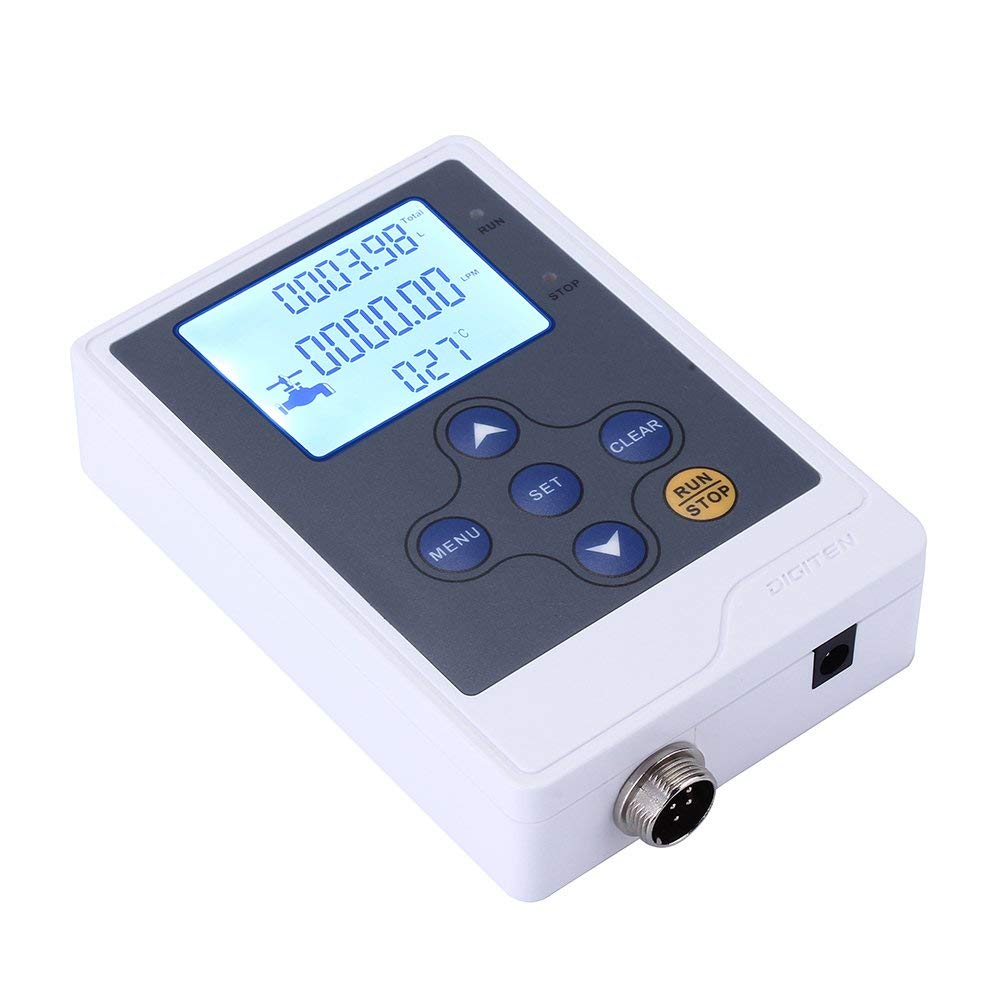

For DFC15 Controller:
Controller Power Requirement: 12VDC
Power Adapter: Input: 100-240VAC; Output: 12VDC, max 2A
Adapter lead length: 1m
Measuring Accuracy: ±1%
Output for Solenoid valve: 12VDC, max 5A
Temperature Sensor: 0-125℃/32-257℉, NTC3950, Accuracy: ±1℃/±1℉ thread: M8
Max Total Volume : 999999 G/L
Quantitative Range: 0-9999.99 G/L
Flow Rate Range: 0-9999.99/LPM(GPM)
Cable Length : 1m
Dimensions: 88mmx126mmx30mm
Weight: 200g
Operation Environment: Temperature: 0-50℃/32-122℉; Relative Humidity: <85%

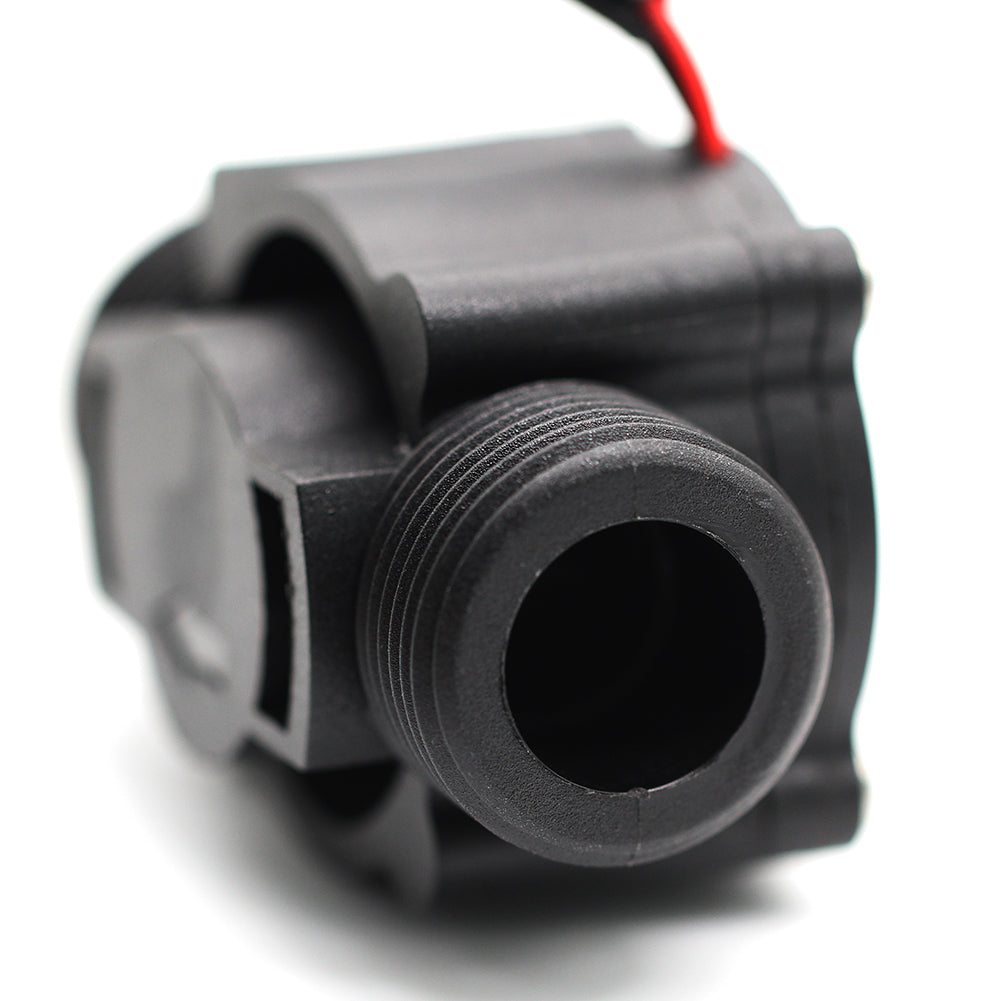

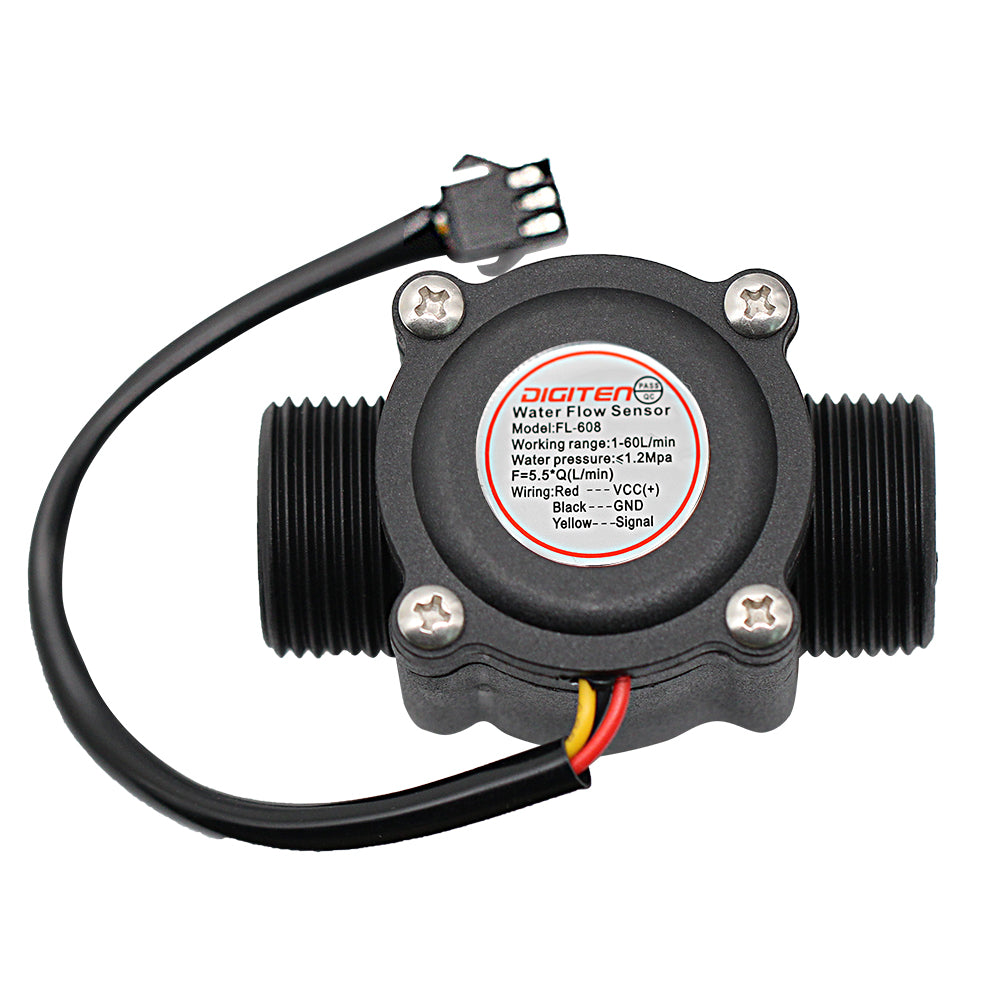

For G3/4" Flow Sensor:
Frequency: F=5.5 * Q (L / Min)
Flow range:1-60L/min
Allow compression:Water pressure 1.75 Mpa below
Sensor:Hall effect
Cable length:15cm.
Error: ± 2%

How to work:

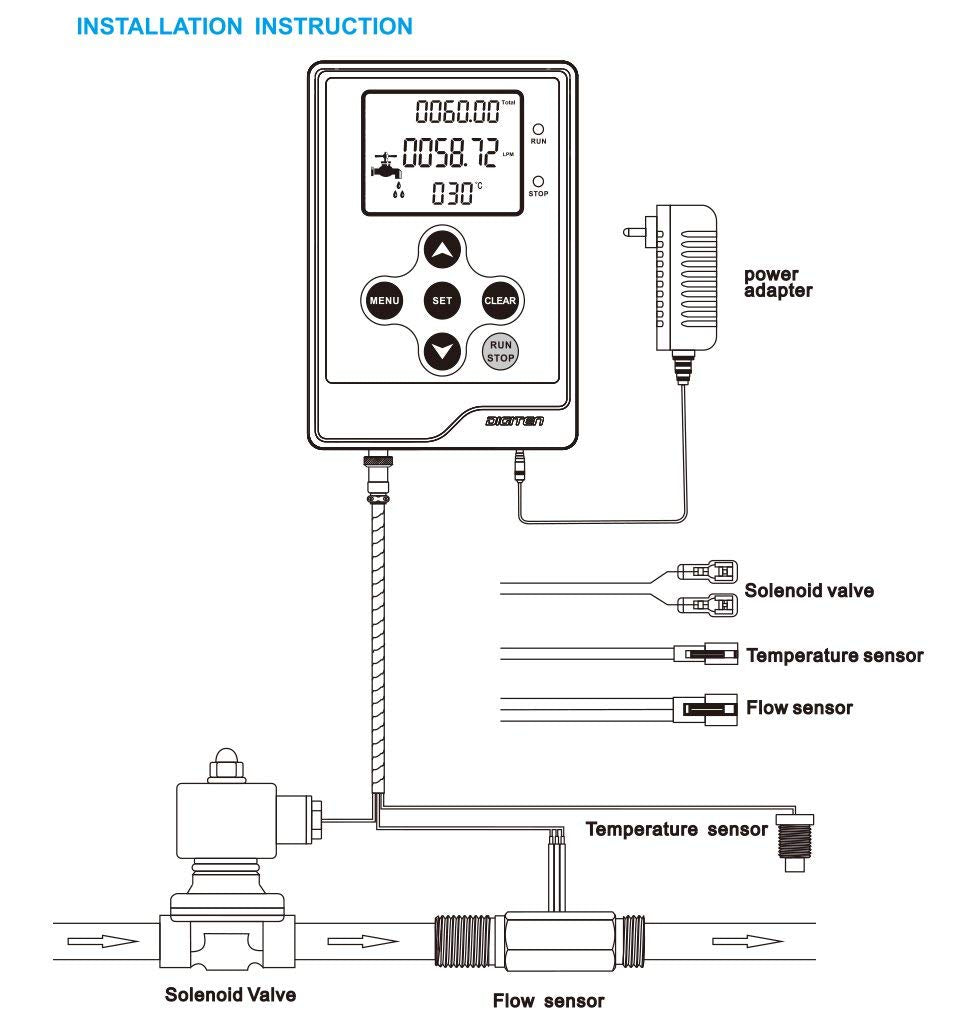

1. Set K value, quantitative value, max alarm value, properly install the flow sensor and solenoid valve.
2. Press the RUN/STOP button, the controller works, total will continuously display the current flow volume, and current flow rate, and the faucet will start animated display.
3. When the flow reaches the quantitative setting value, the controller turn off the solenoid valve automatically, and the total value stop, faucet animation will be stopped dropping, flow rate back to zero.
4. Press the RUN/STOP button again and the controller will repeat the same job.

Note:
1, This controller work with the solenoid valve up to 5A, but this kit come with 2A power adapter. If drive a large solenoid valve, please use suitable power adapter.
2, Ensure the solenoid valve and flow sensor direction is the same with water flow.
3, Avoid the water into the controller.

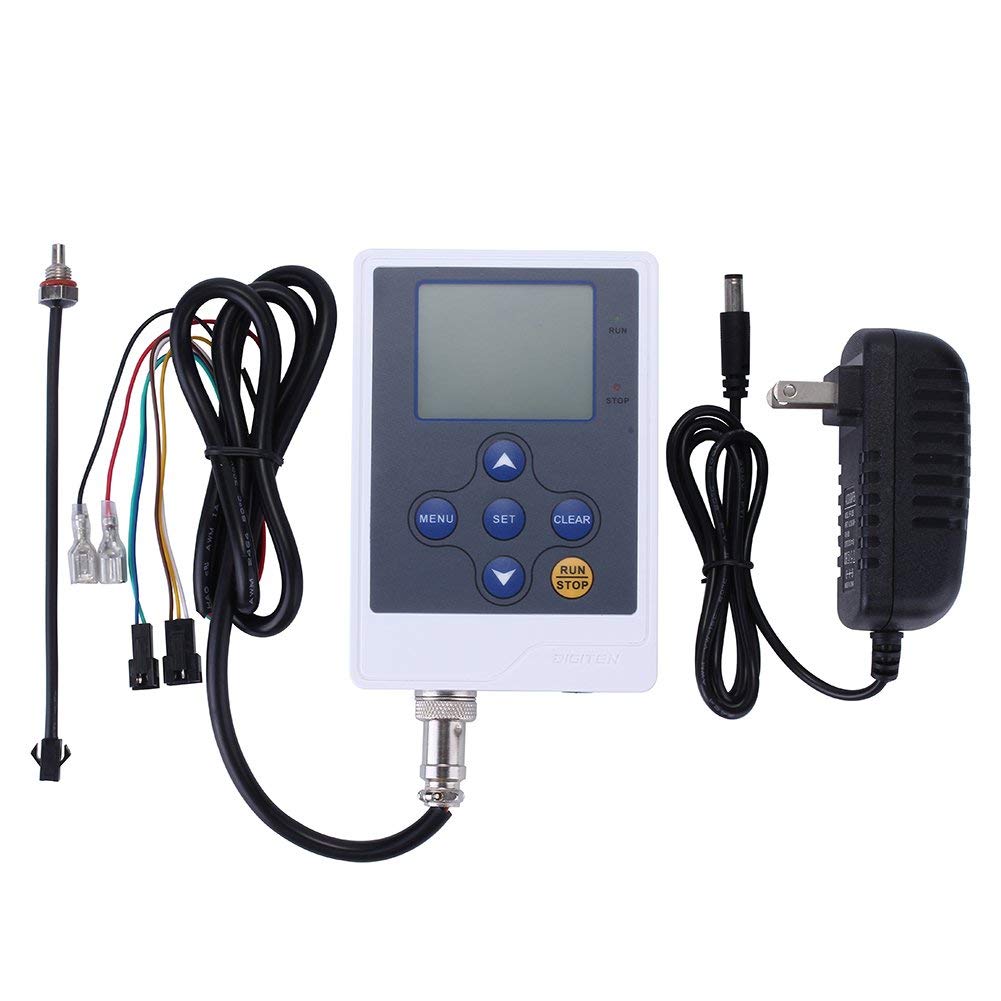

Package includes:
1 x DFC15 controller
1 x G3/4" flow sensor
1 x Power adapter
1 x Temperature sensor
1 x Manual
