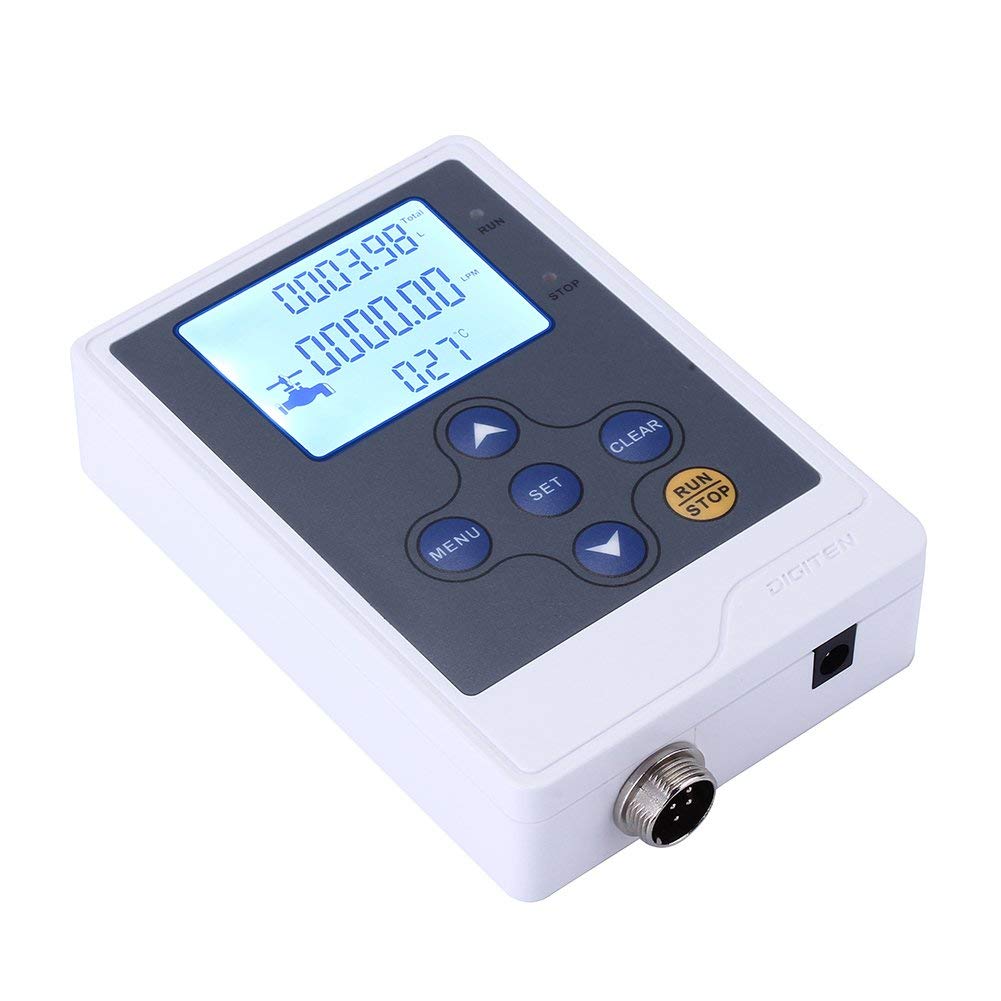

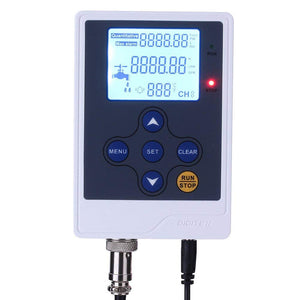

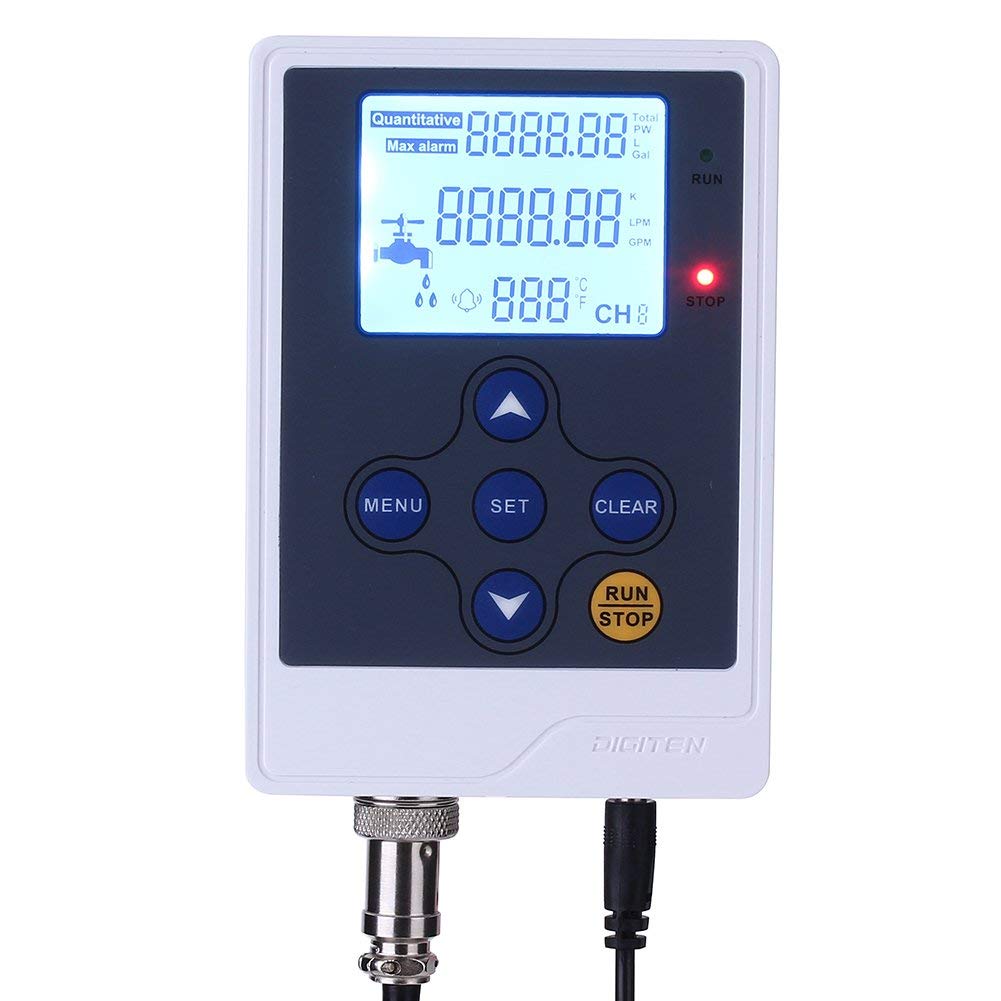

DIGITEN LCD Display Water Flow Quantitative Controller

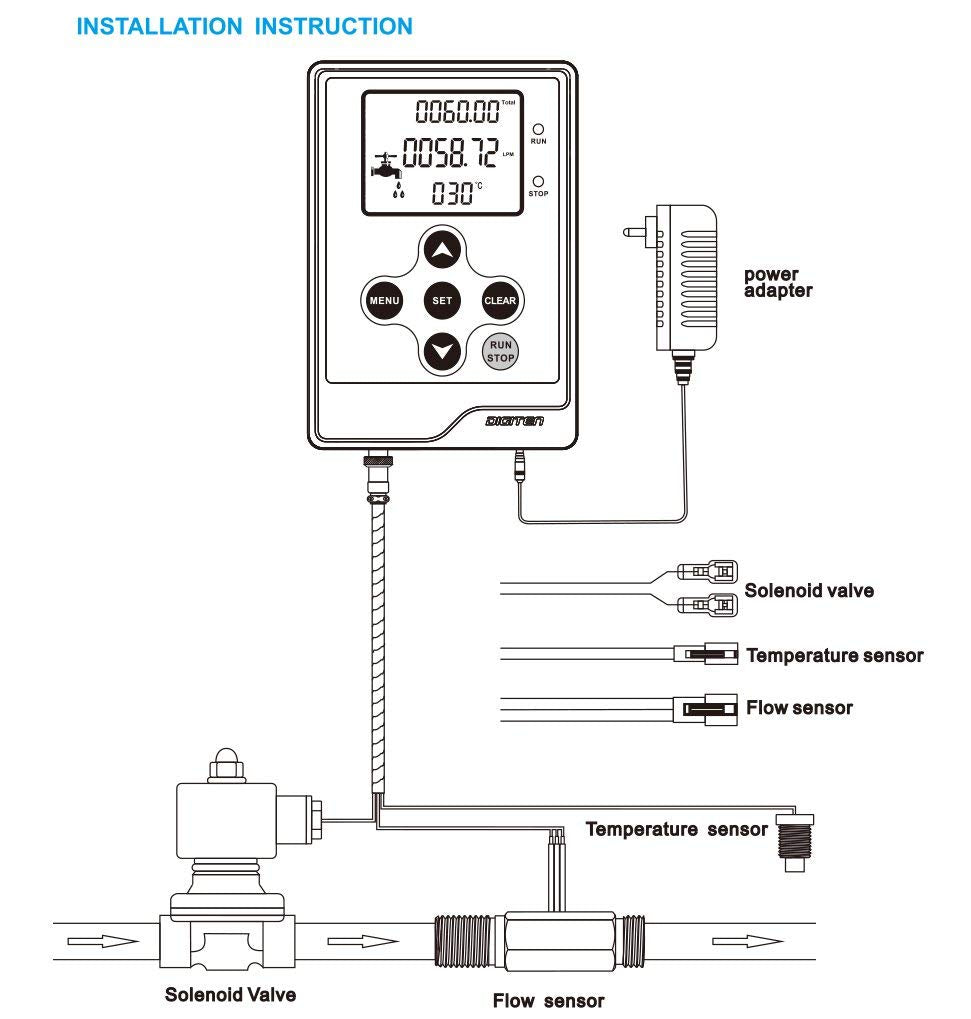

This liquid flow controller(DFC15) is used to measure and control the flow of liquid, it can control solenoid valve on/off when the flow reaches to setting value.
Technical Specifications:
Controller Power Requirement: 12VDC
Power Adapter: Input: 100-240VAC; Output: 12VDC, max 2A
Adapter lead length: 1m
Measuring Accuracy: ±1%
Output for Solenoid valve: 12VDC, max 5A
Temperature Sensor: 0-125℃/32-257℉, NTC3950, Accuracy: ±1℃/±1℉ thread: M8
Max Total Volume : 999999 G/L
Quantitative Range: 0-9999.99 G/L
Flow Rate Range: 0-9999.99/LPM(GPM)
Cable Length : 1m
Dimensions: 88mmx126mmx30mm
Weight: 200g
Operation Environment: Temperature: 0-50℃/32-122℉; Relative Humidity: <85%
Note:
1, This controller work with the solenoid valve up to 5A, but this kit come with 2A power adapter. If drive a large solenoid valve, please use suitable power adapter.
2, Please use teflon on the thread when requirement, ensure don't leak.
3, The wires can be extended up to 10m.
4, Avoid the water into the controller.

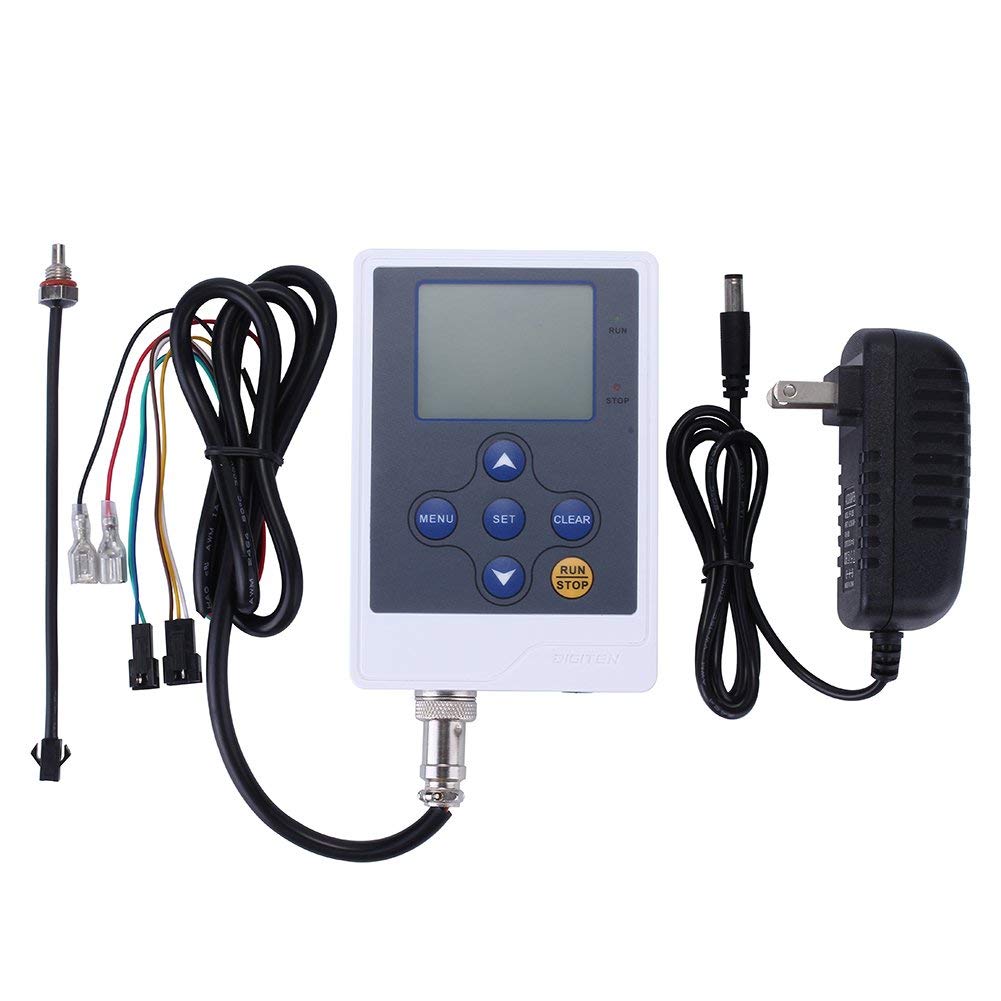

Package includes:
1 x DFC15 controller
1 x Temperature sensor
1 x Power adapter
1 x Manual
