DIGITEN Water Flow Control LCD Display+G1/2"Thread Water Flow Hall Sensor Flowmeter with Temperature Sensor

  • $58.99
    Unit price per
Shipping calculated at checkout.


FEATURES

Quantitative control
Controller will turn off the solenoid value automatically when flow reach to the setting value you desire
Monitor flow rate
Display the REAL-TIME volume of liquid which passes per minute
Work with all hall effect flow sensor
It can work various different flow sensor through adjust the K value
Volume unit
Display Liter or Gallon
Water meter
DFC15 can be used to measure the volume of water
Adjustable accuracy
Calibrate the accuracy through adjust the K parameter
Temperature monitor

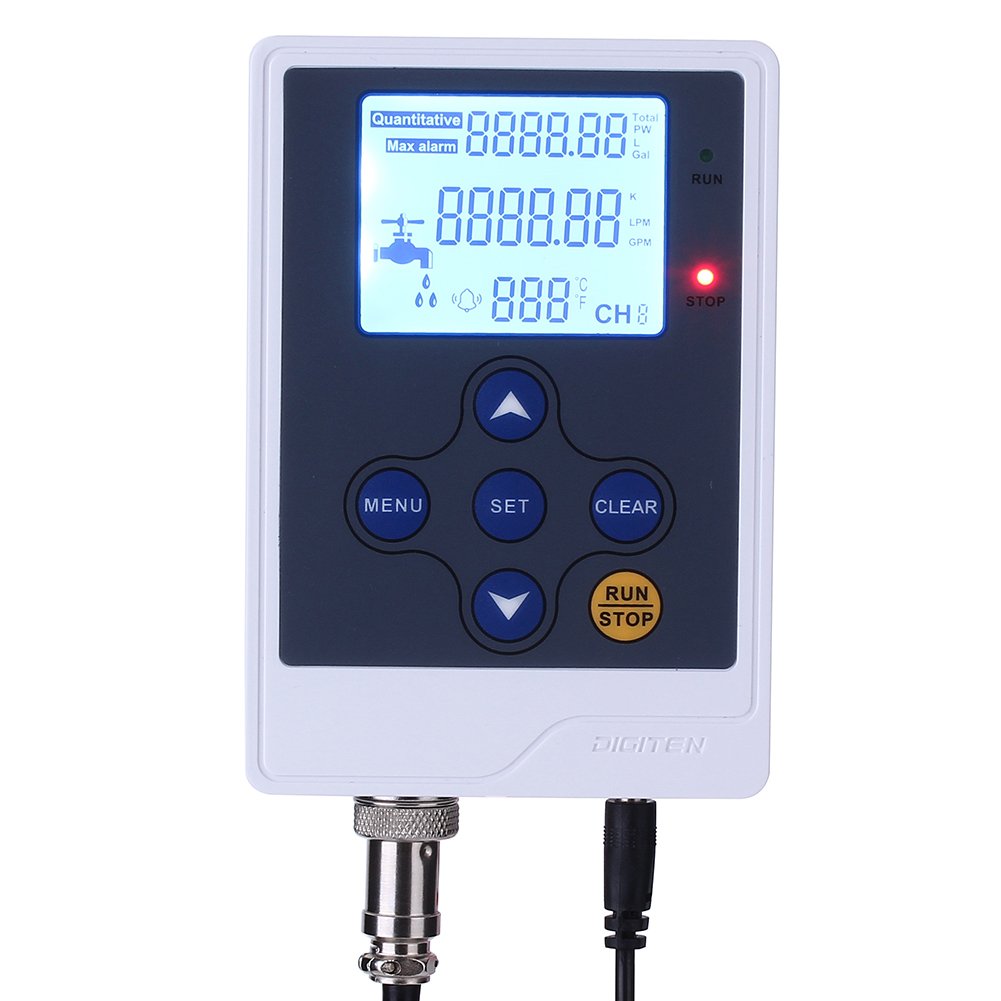

Come with temperature sensor, it can measure liquid temperature Easy-to-Read Front-Panel Liquid Crystal Display
Displays the flow total volume, flow rated and sensed temperature clearly; custom icons on the display indicate the controller working status at a glance

TECHNICAL SPECIFICATIONS
Controller Power Requirement: 12VDC
Power Adapter: Input: 100-240VAC, Output: 12VDC, max 2A
Adapter lead length: 1m
Measuring Accuracy: ±1%
Output for Solenoid valve: 12VDC, max 5A
Temperature Sensor: 0-120℃/32-212℉, NTC3950, Accuracy: ±1℃/±1℉ thread: M8
Max Total Volume : 999999 G/L
Quantitative Range: 0-9999 G/L
Flow Rate Range: 0-9999.99/LPM(GPM)
Cable Length : 1m
Operation Environment: Temperature: 0-50℃/32-122℉ Relative Humidity: <85%

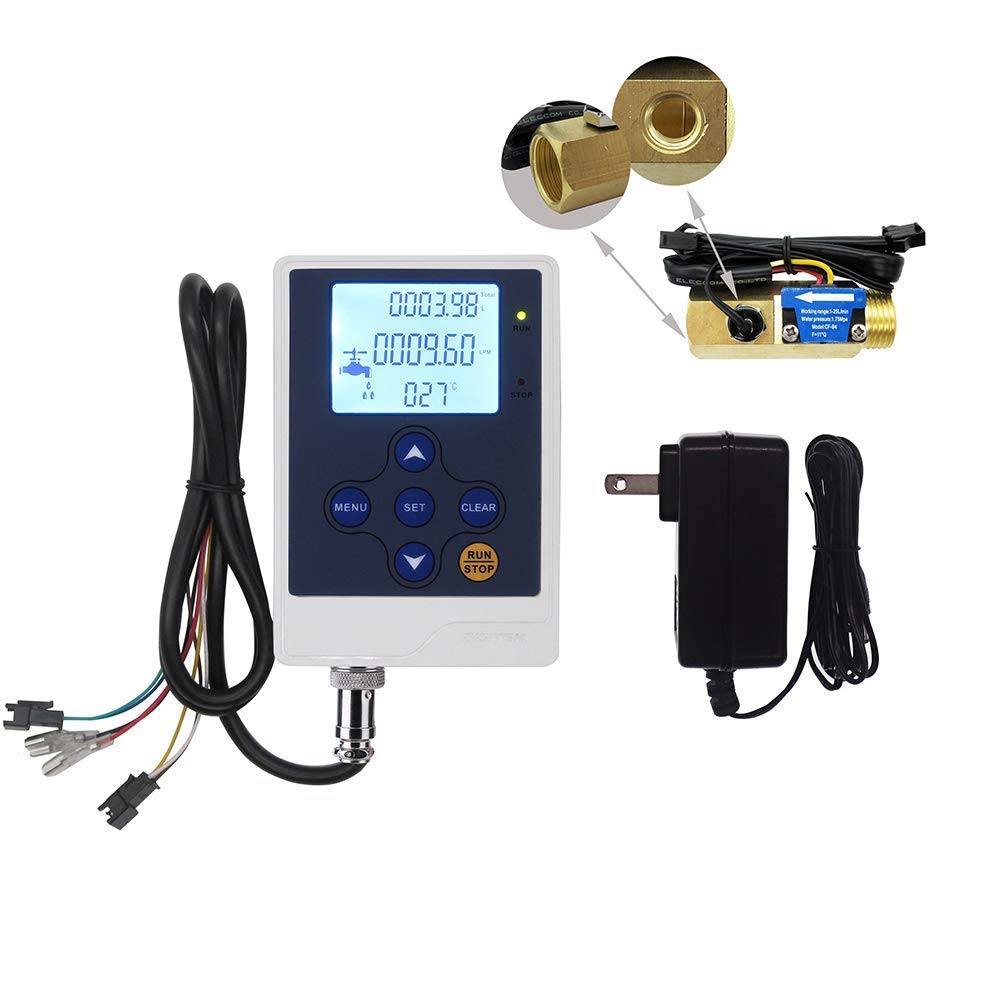

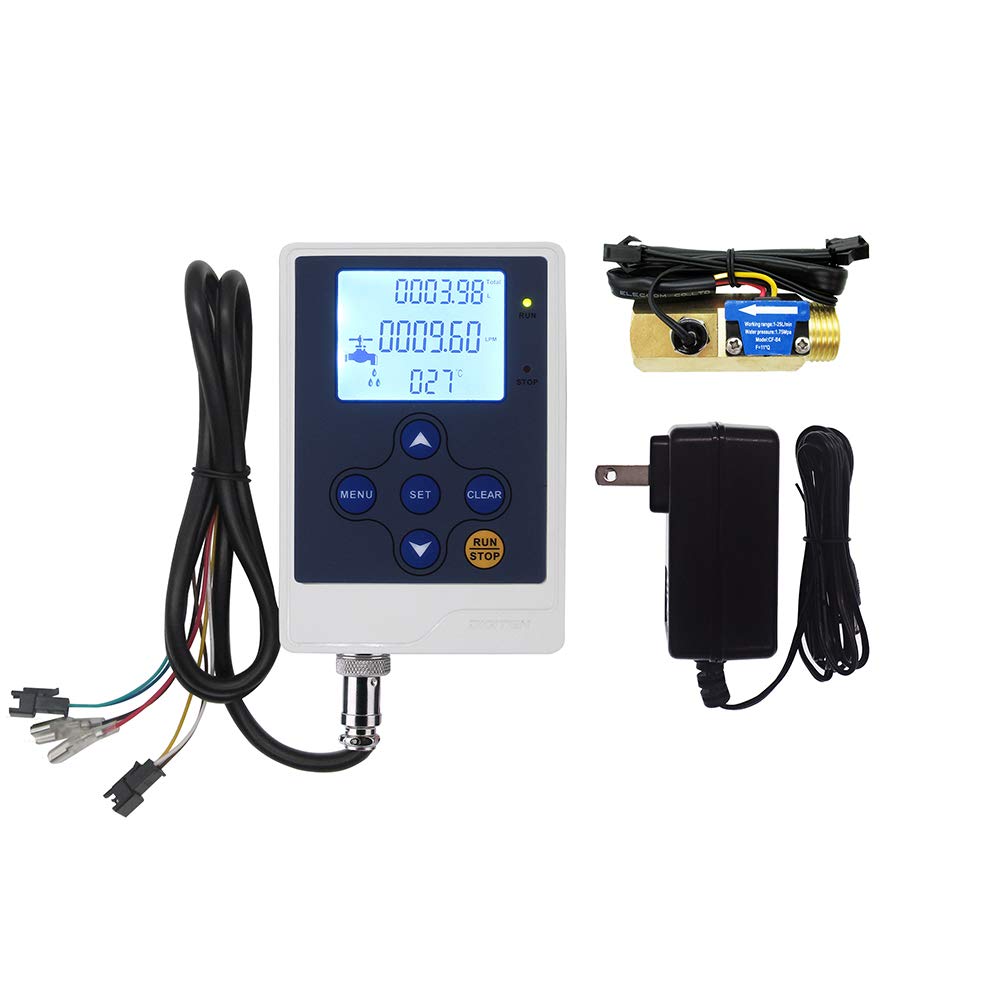

Packaging include
1 x DFC15 controller

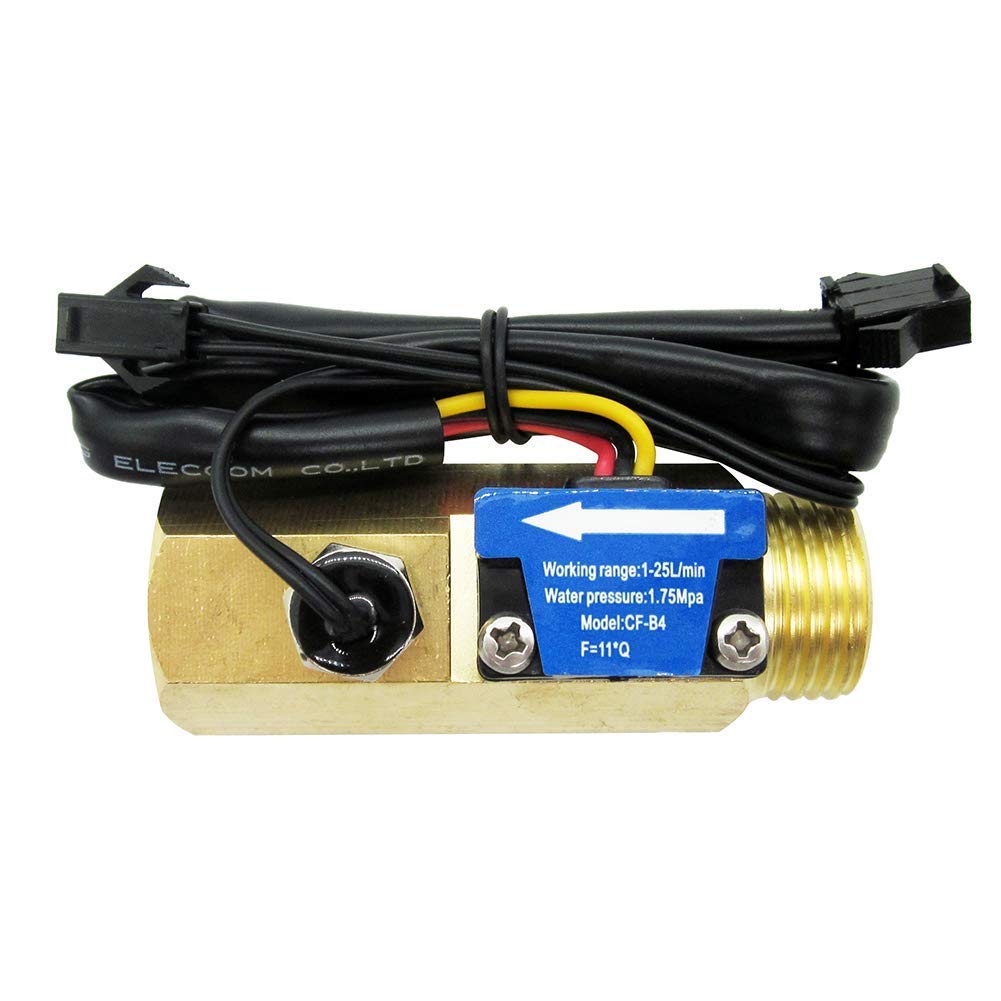

1 x G1/2" flow sensor
1 x AC100-240V power adapter
1 x Temperature sensor
1 x Instruction

Customer Reviews

Based on 1 review
0%
(0)
100%
(1)
0%
(0)
0%
(0)
0%
(0)
C
C.M.
Works as advertized

It does not have NPT thread. It uses a straight cut thread on the Female side of the flow meter and a British pipe thread on the male side. K Factor for water starts around 40.0 but mine needed a K Factor of 40.25 for totaling accuracy.
