DIGITEN LCD Flow Meter Quantitative Controller+ 3/8" Connect Hose Oil Fuel Gas Diesel Milk Flow Meter
Features

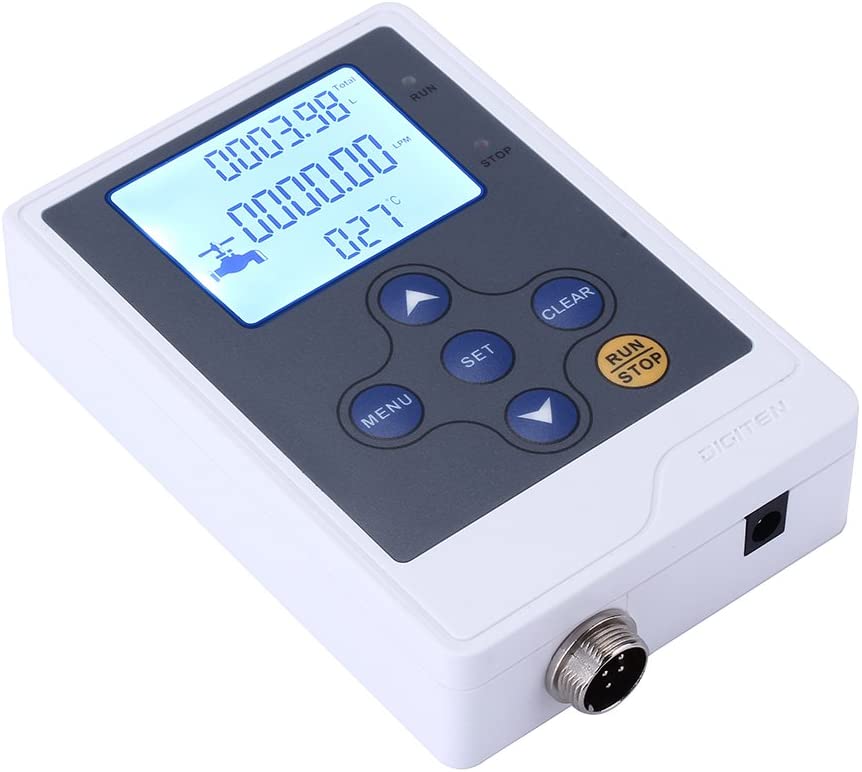

★【Large LCD Screen】: Support reading with Liter or Gallon unit, LPM/GPM switchable. DFC15 will display the flow rate(the REAL-TIME volume of liquid which passes per minute), the flow total volume and sensed temperature clearly.
★【Quantitative Control】: The controller will turn off the solenoid valve automatically when flow reach to the setting value you desire, it's easy to install and control.
★【Work with All Hall Effect Flow Sensor】: It can work with various different flow sensors through adjust the K value. Come with temperature sensor, it can measure liquid temperature.
★【Wide Applications】: Swimming Pool, water dispenser, coffee machine, drip irrigation system, beer brewing, etc. For example, if you want 5 liters of water or oil, you can set up 5 liters of water on the DFC15 controller. When the water in the container reaches 5 liters, the controller will control the solenoid valve to close it, the water flow stops, and you just get 5 liters of water. Please select a suitable flow meter. An oil flow meter is required for liquids other than water
Specifications:
For DFC15 Controller:
Controller Power Requirement: 12VDC
Power Adapter: Input: 100-240VAC; Output: 12VDC, max 2A
Adapter lead length: 1m
Measuring Accuracy: ±1%
Output for Solenoid valve: 12VDC, max 5A
Temperature Sensor: 0-125℃/32-257℉, NTC3950, Accuracy: ±1℃/±1℉ thread: M8
Max Total Volume : 999999 G/L
Quantitative Range: 0-9999.99 G/L
Flow Rate Range: 0-9999.99/LPM(GPM)
Cable Length : 1m
Dimensions: 88mmx126mmx30mm
Weight: 200g
Operation Environment: Temperature: 0-50℃/32-122℉; Relative Humidity: <85%
For G3/8" Oil Flow Sensor:
Flow range:1-30L/min
Output signal: pulse signal, 2.5mL/P.
Error: ± 0.5%

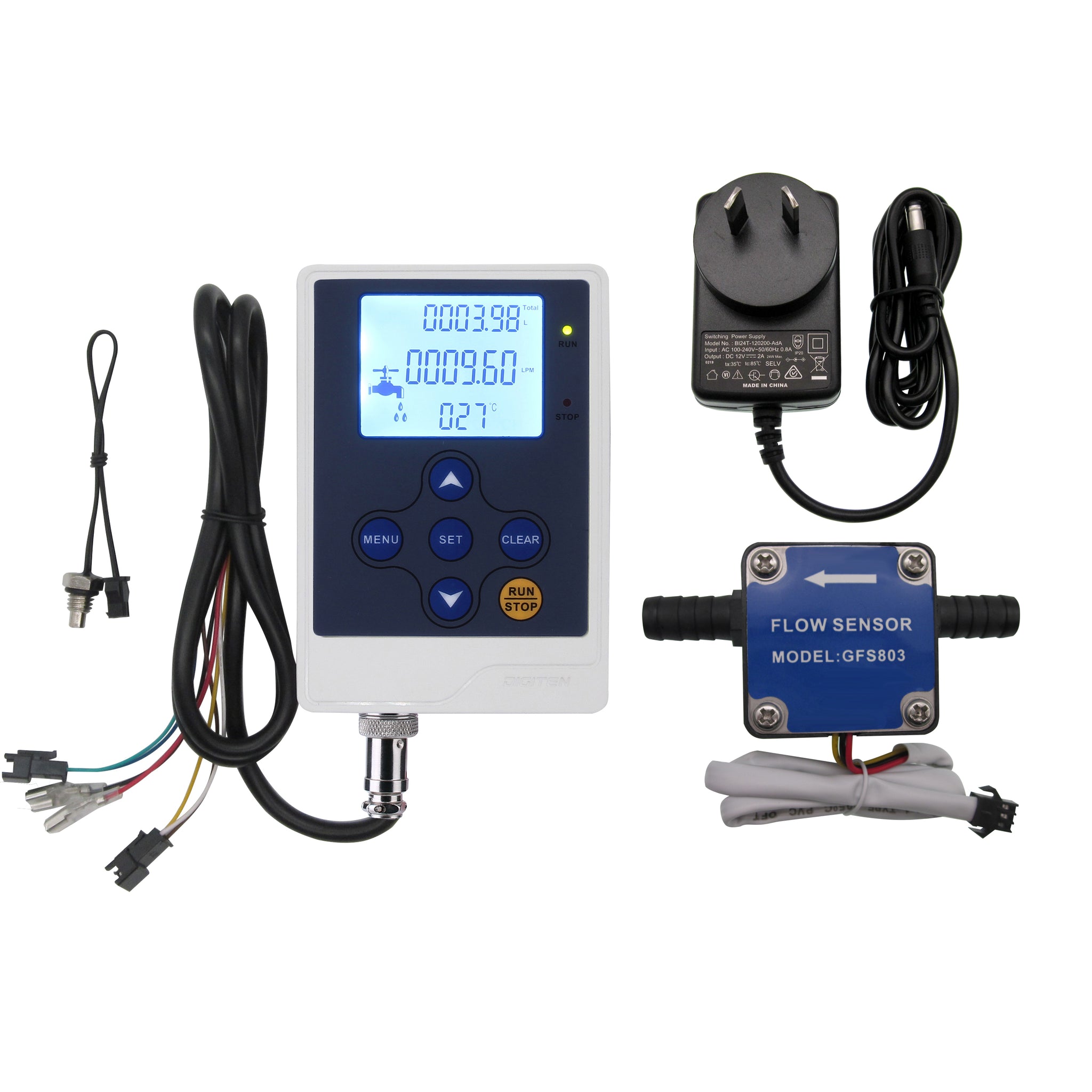

Packaging include
1 x DFC15 controller
1 x G3/8" oil flow sensor
1 x Power adapter
1 x Temperature sensor
1 x G3/8" oil flow sensor
1 x Power adapter
1 x Temperature sensor
1 x Manual
