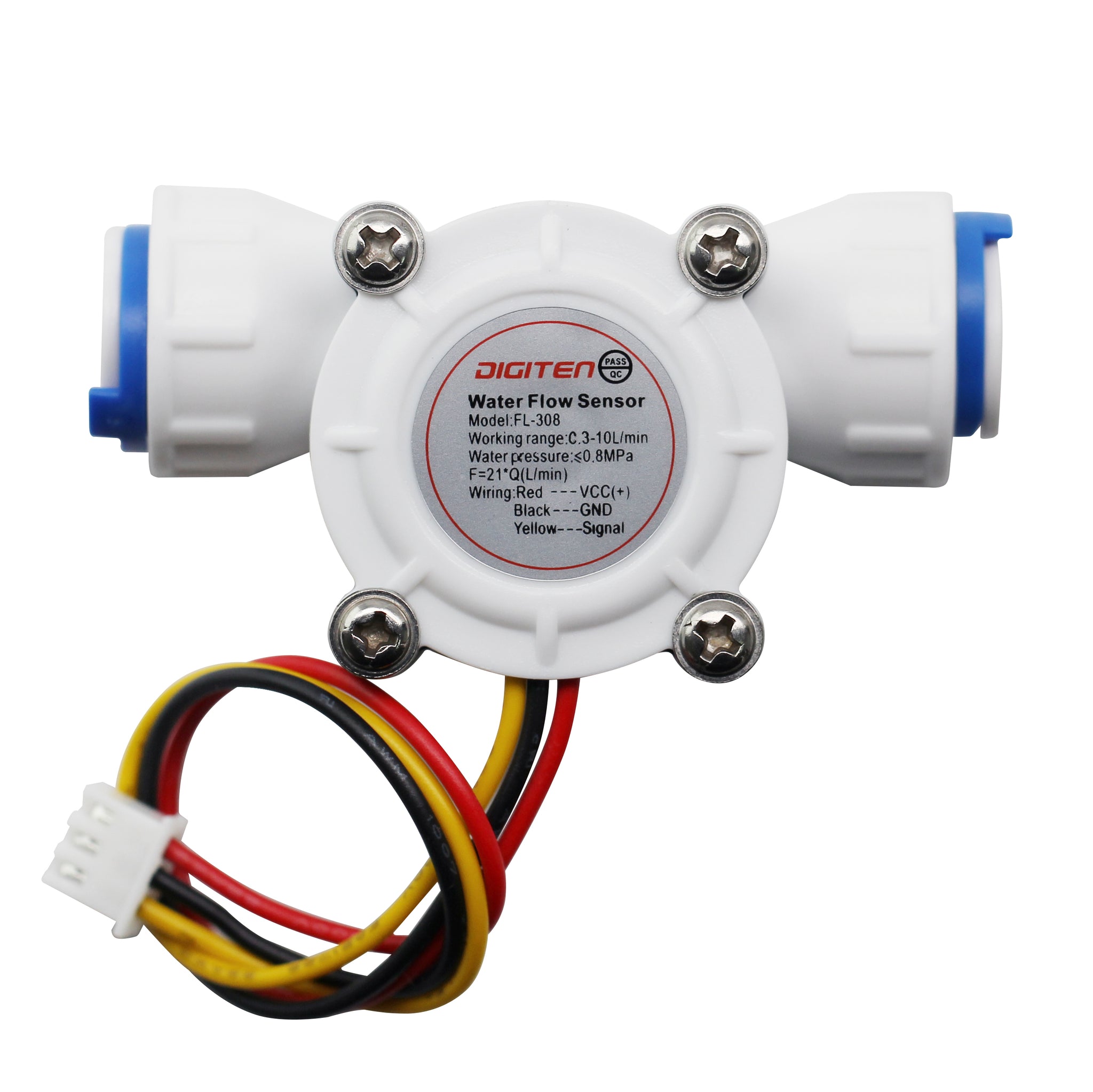

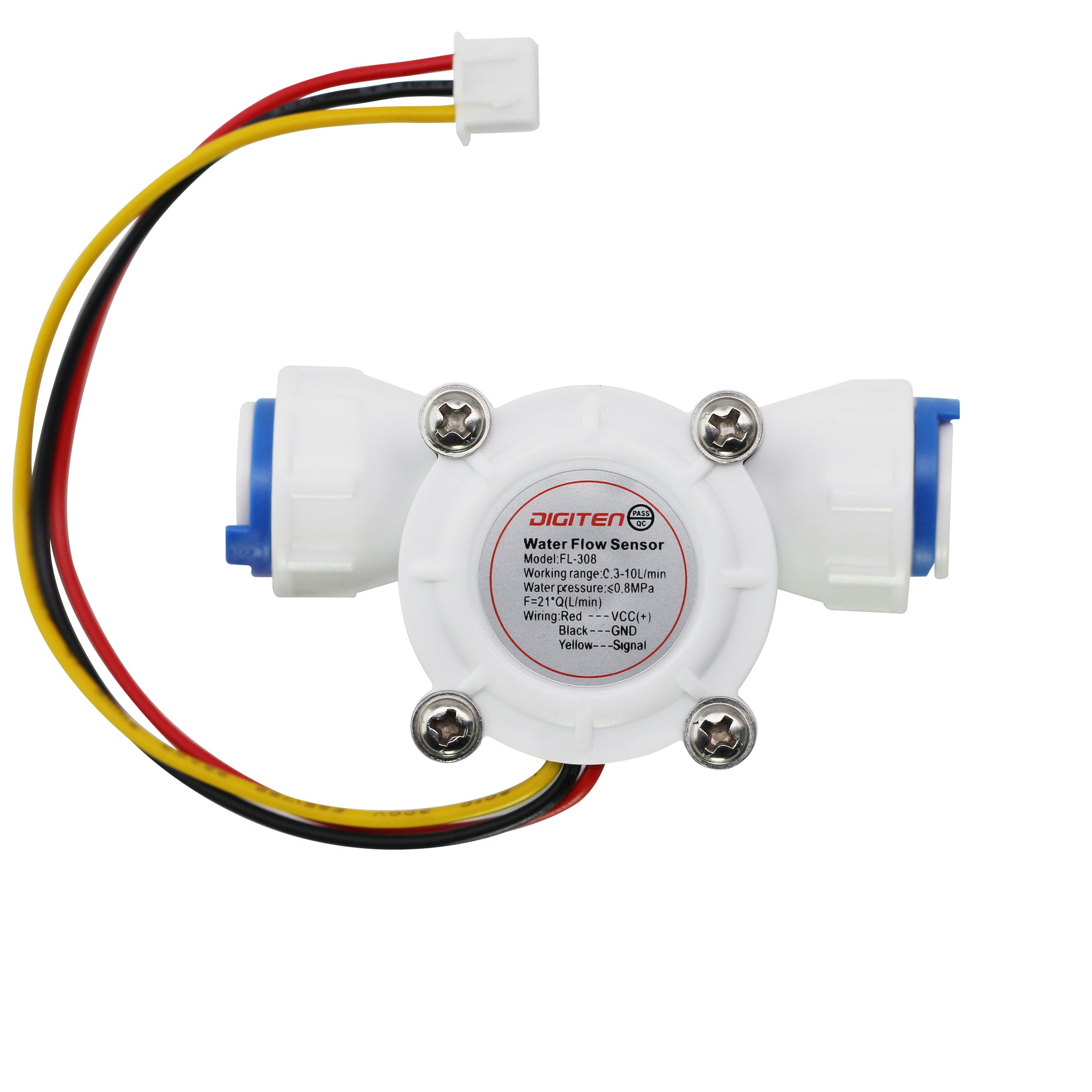

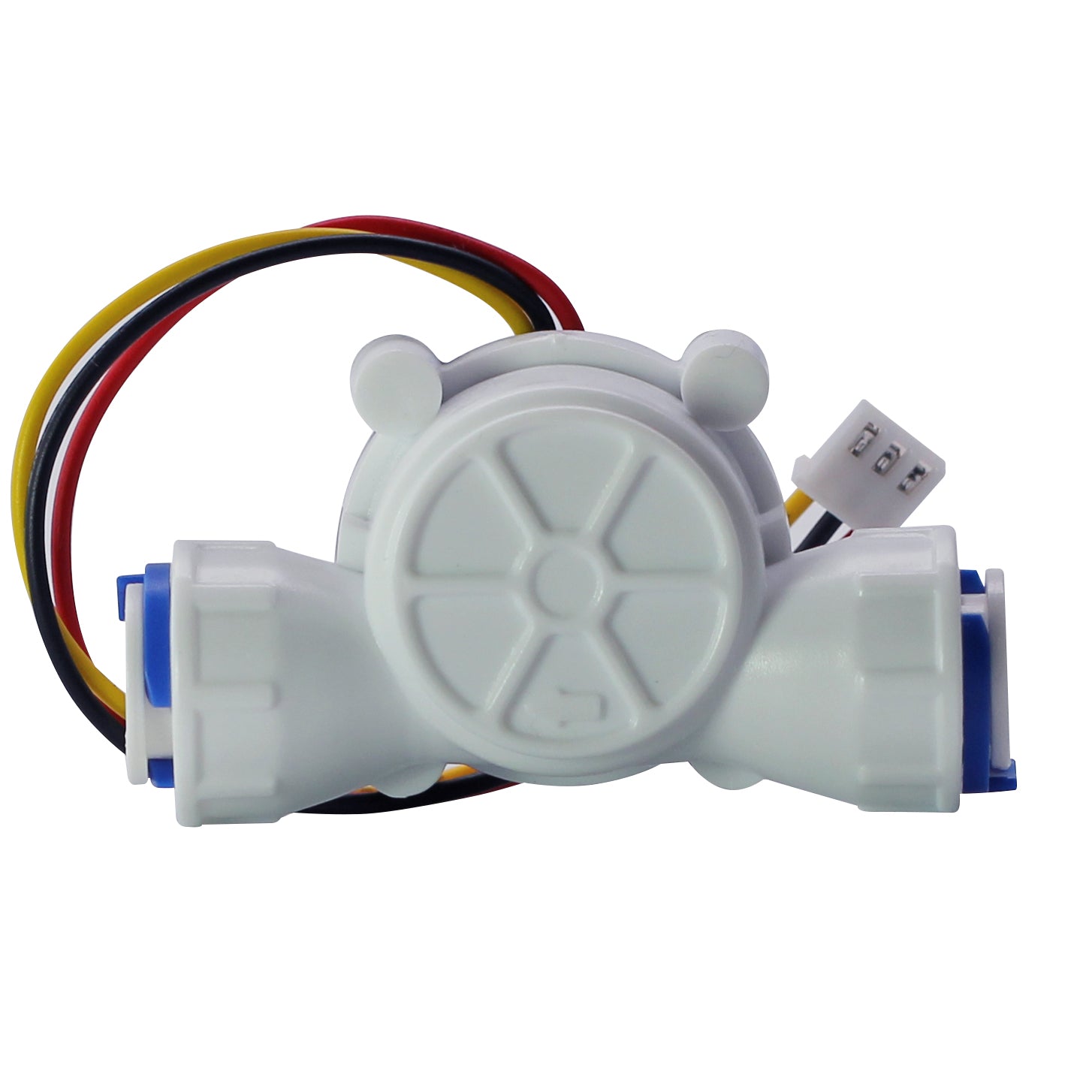

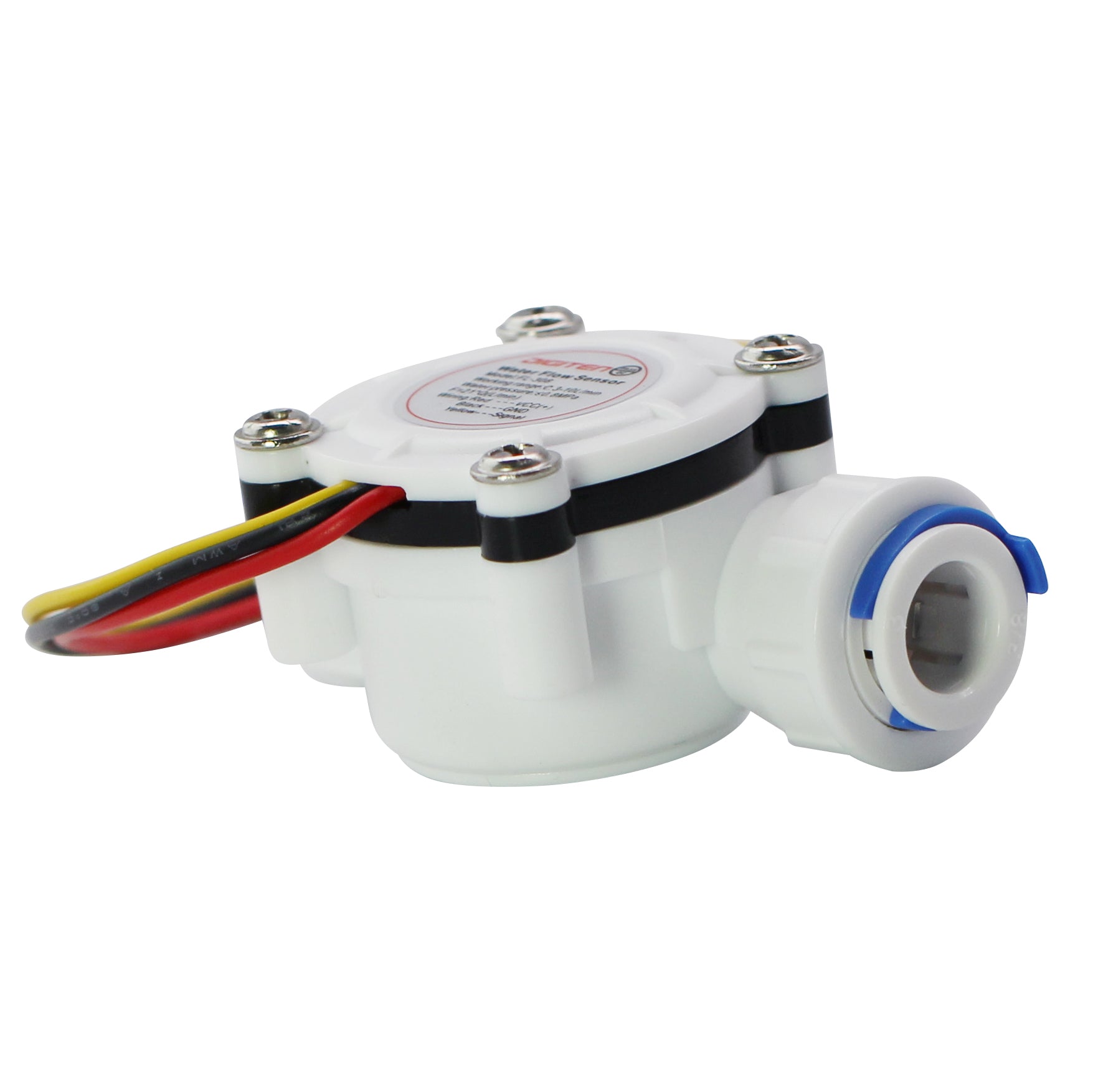

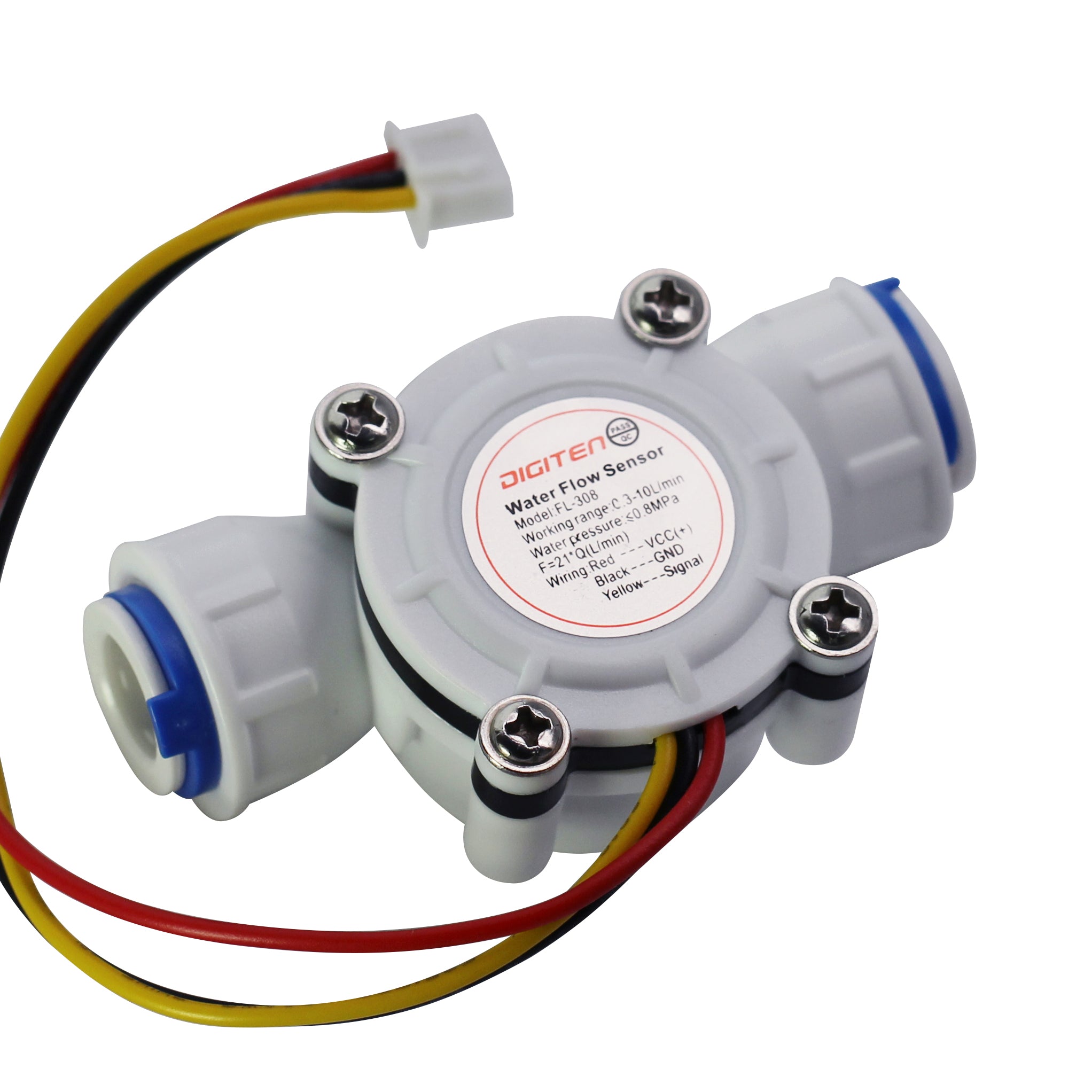

DIGITEN G3/8" Quick Connect Water Flow Sensor Switch Flowmeter Counter 0.3-10L/min

DIGITEN G3/8" Quick Connect Water Flow Sensor Switch Flowmeter Counter 0.3-10L/min

  • $7.19
Shipping calculated at checkout.


Waterproof, heat resistance, pressure resistance, cold resistance. Easy to install.
Frequency: F=21 * Q (L / Min) error: ± 2% voltage : 3.5-24VDC,
current can not exceed 10mA, 450 output pulses/liters,
F=constant * units of flow (L / min) * time (seconds)
Working range:0.3-10L/min
Working voltage range: DC 5-24 V
Operating Temp:≤80℃,Operating humidity:35%-90%RH
Pressure range: Water pressure 0.8 MPa below
Storage Temperature:-25-80℃
Storage humidity:25%-95%RH
Output Waveform: Square Wave, output pulse signal.
ROHS Compliant.
Cable length:15cm.
Wiring :Red---VCC(+)
Black---GND
Yellow----Signal


Packaging include
G 3/8" Flowmeter x 1


We Also Recommend


Customer Reviews

Based on 3 reviews
67%
(2)
0%
(0)
0%
(0)
33%
(1)
0%
(0)
B
B.F.L.
Haven’t arrived

When will they get here?

S
S.
Works, but calibration is off

This sensor works, but the one I received seems to be incorrectly labelled. I am testing pumping 1L of water through the sensor, and am consistently getting 1140 pulses per liter, not 450. As such, I had to modify the Q value to 15 to get my output to read approximately 1L of total fluid measured.

L
L.
Works like it should

I've updated this review and deleted what I had before. While I had problems with air flowing through it, as the seller pointed out here, it isn't made for airflow. Once I began pumping water through it, I had no problems with the spinner inside. The mistake was mine, and the product is good!
