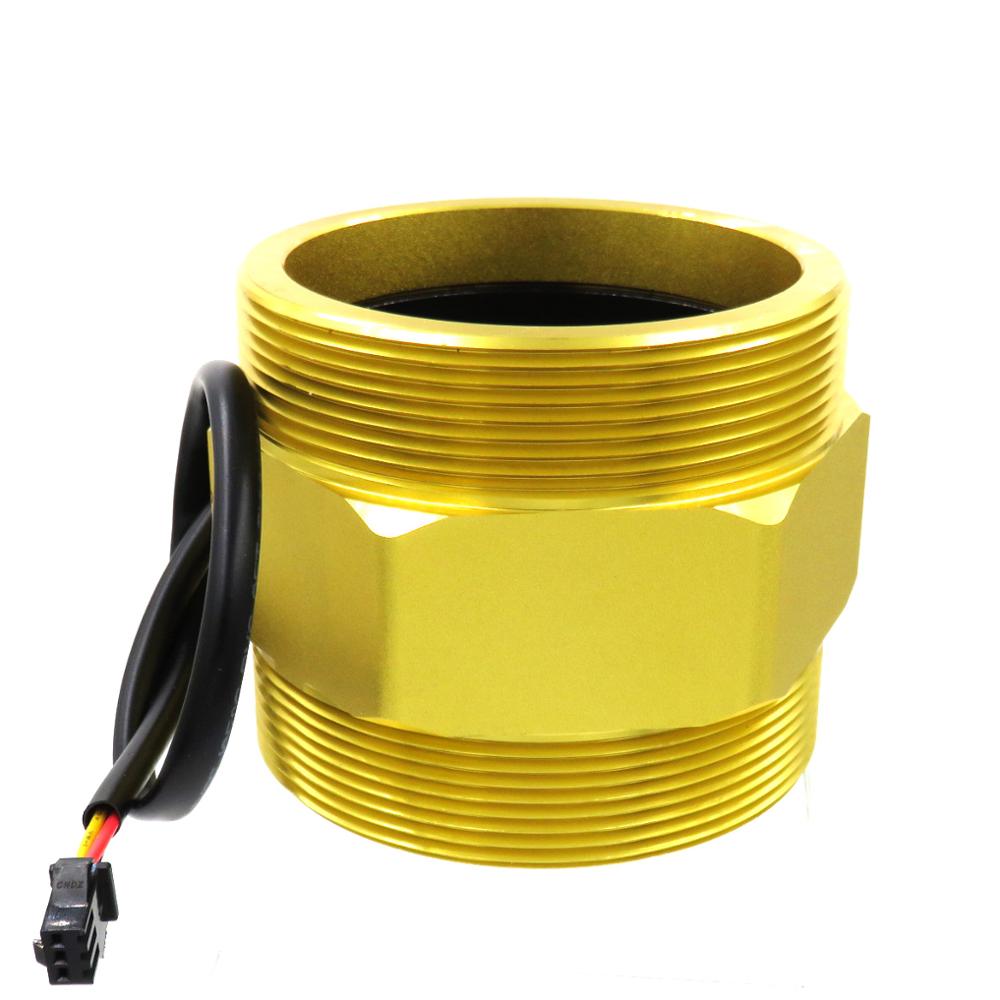

DIGITEN G3" 3 inch Water Flow Sensor Turbine Hall Effect Flow Meter 30-500L/min

Features
Waterproof,Heat resistance,pressure resistance,cold resistance.
Easy to install.
Flow range:30-500L/min
Sensor:Hall effect
Mainly material: POM
Maximum current:15 mA(DC 5V)
Working voltage range:DC 5-18 V
Load capacity:≤10 mA(DC 5V)
Operating Temp:≤80C,Operating humidity:35%-90%RH
Allow compression:Water pressure 1.75 Mpa below
Insulation resistance:>100M OHM
Storage Temperature:-25+80C
Storage humidity:25%-95%RH
Output Waveform:Square Wave,output pulse signal.
Cable length:500mm.
Max Size:87mm*75mm

Packaging include
G3" Flowmeter x 1
