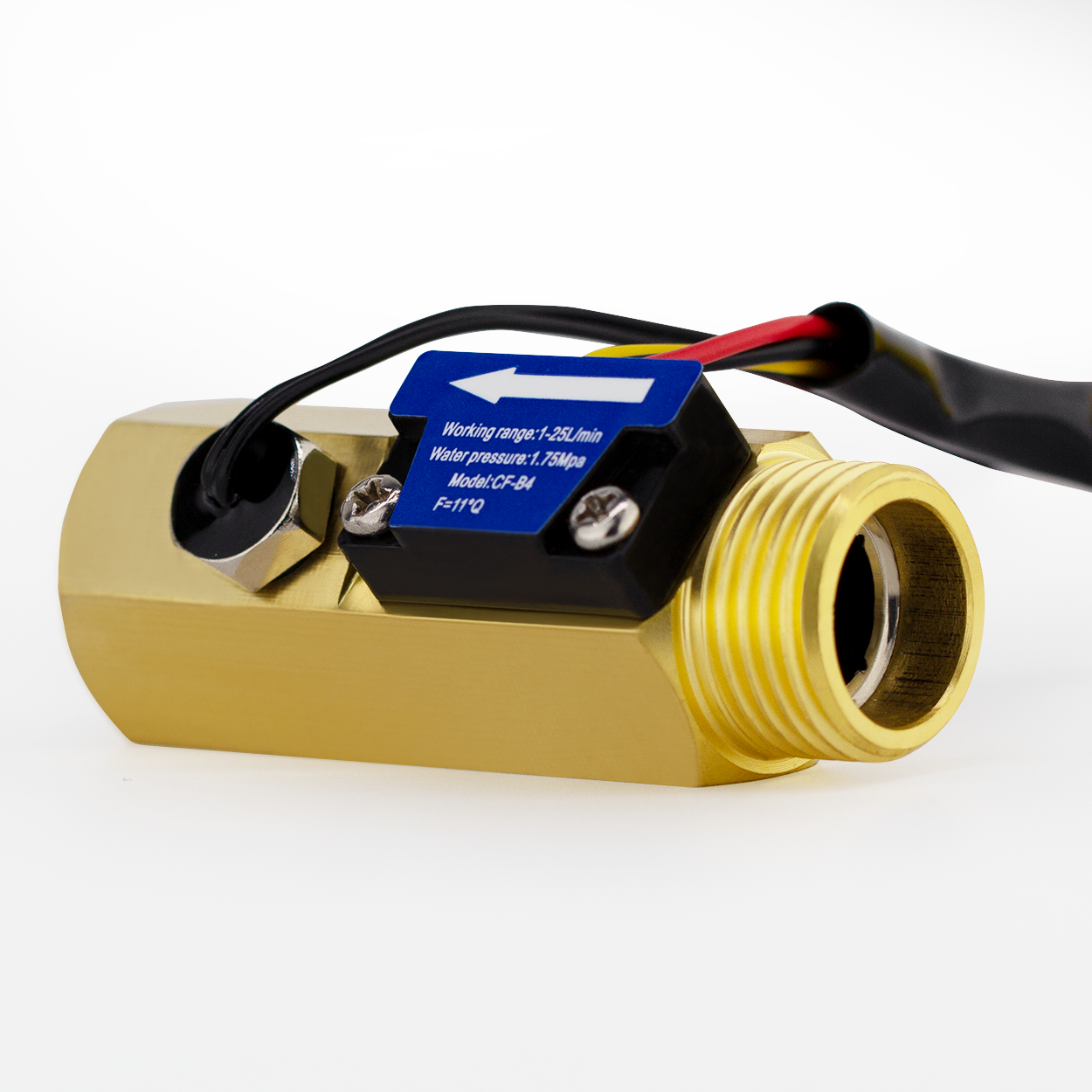

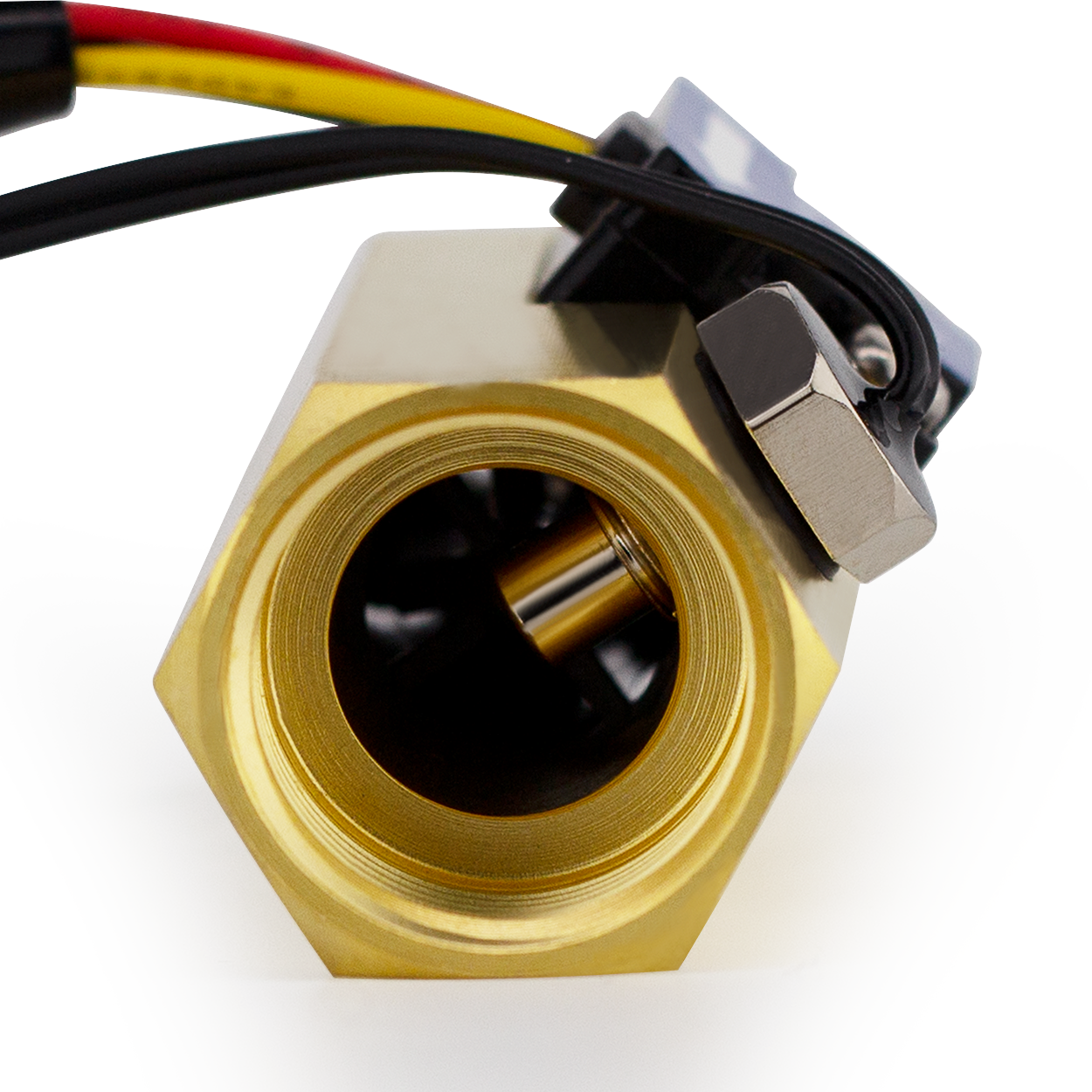

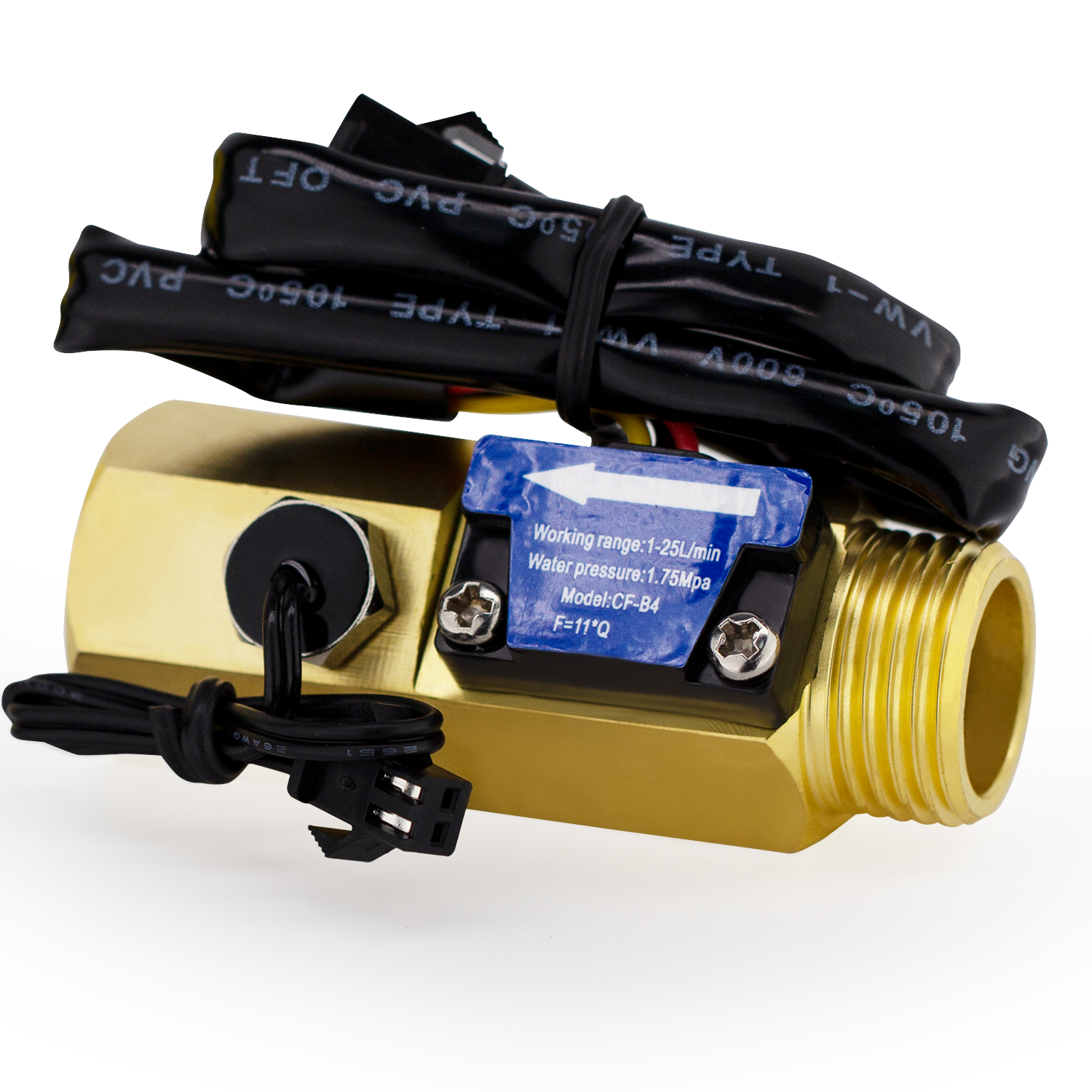

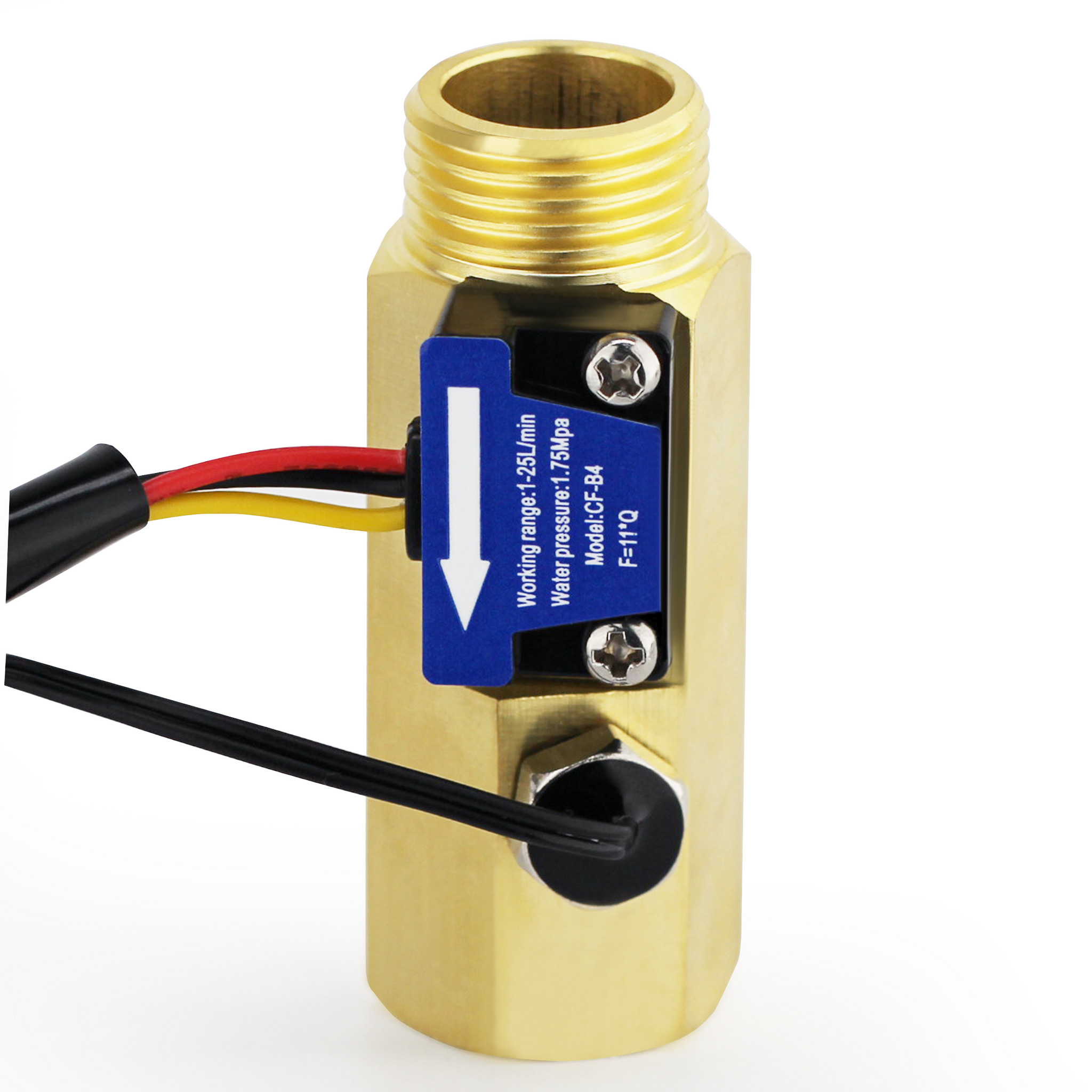

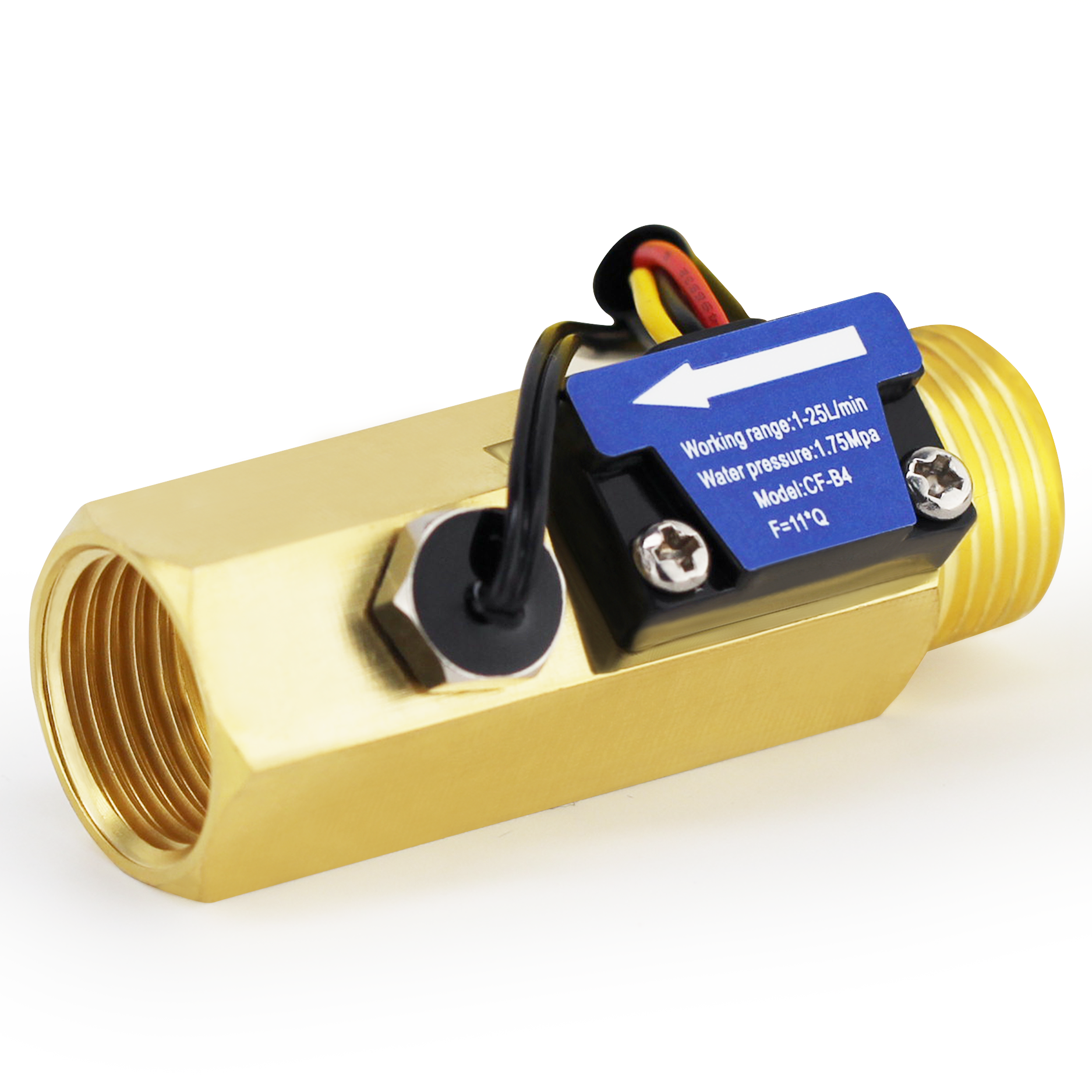

DIGITEN G1/2"Thread Water Flow Hall Sensor Switch Flowmeter Counter with Temperature Sensor Female and Male Thread 1-25L/min

DIGITEN

  • $14.39
    Unit price per
Shipping calculated at checkout.


Descriptions:
1.This flow sensor is made of brass, it is waterproof,heat resistance,pressurresistance,cold resistance.
2. It is small size and easy to install.
3.Tis flowmeter can measure water temperature with temperature sensor.
4. The flowmeter can be used in a wide range of instruments to measure the flow of fluid in pipes
5. The flow meter is stable and reliable.
6. All materials are in line with ROHS testing standards.

Specifications:
Working range: 1-25L/min
Max water pressure: 1.75Mpa
F=11Q(L/min)
Working Voltage Range: DC5-15V
Accuracy:±3%
Temperature sensor: NTC 3950 R25=50K
Detectionn Range of Temperature Sensor: -20℃~100℃
Temperature Resistance Range: 80℃
Male Thread External Diameter:20.5mm(0.8Inch)
Female Thread Internal Diameter:19mm(0.74Inch)
Tube Length:65mm(2.56Inch)
Cable Length:30cm(11.81Inch)
Temperature Sensor Length:16mm(0.63Inch)
Size:65mm*30mm*28mm(L*W*H)

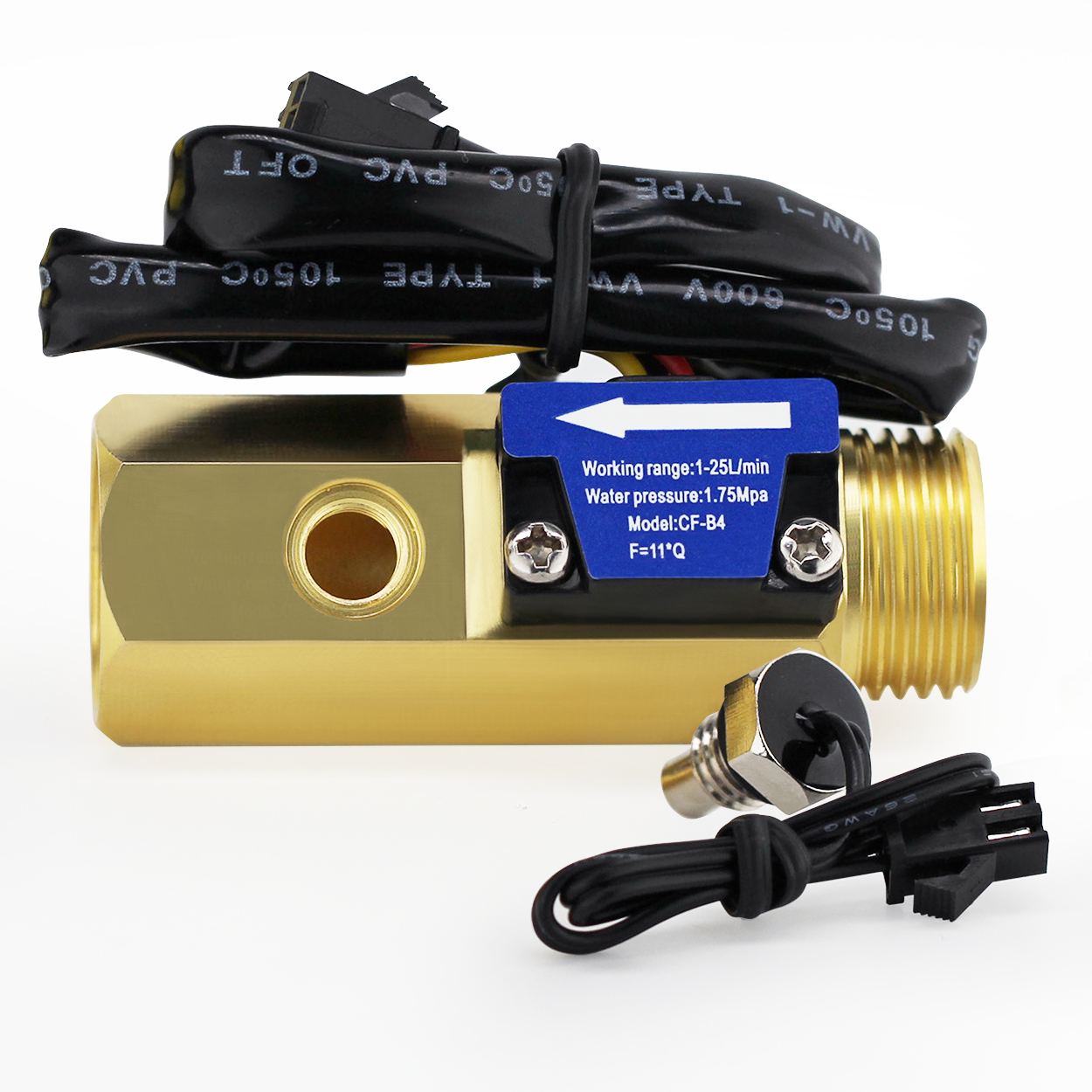

Package Include:
Flow meter x 1
