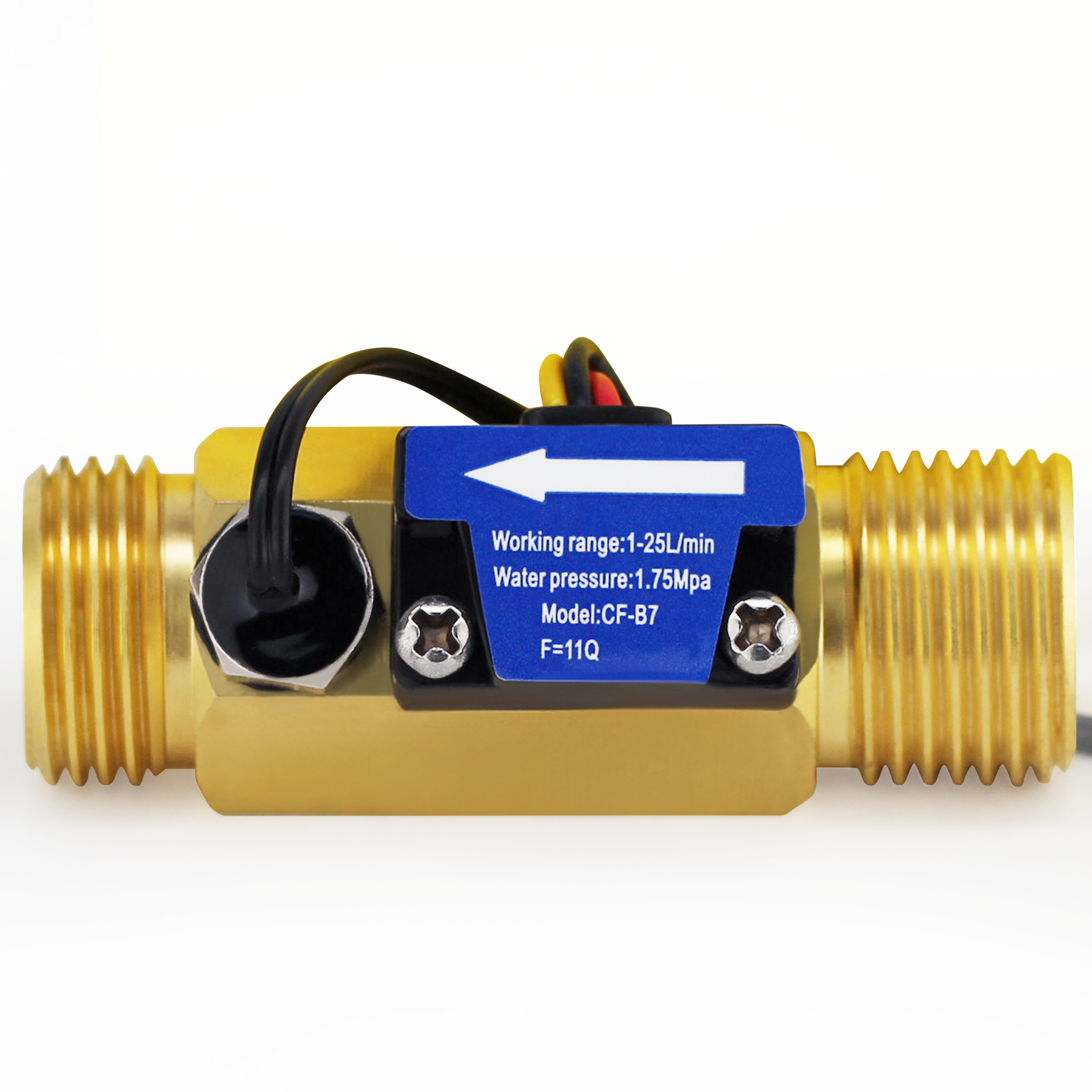

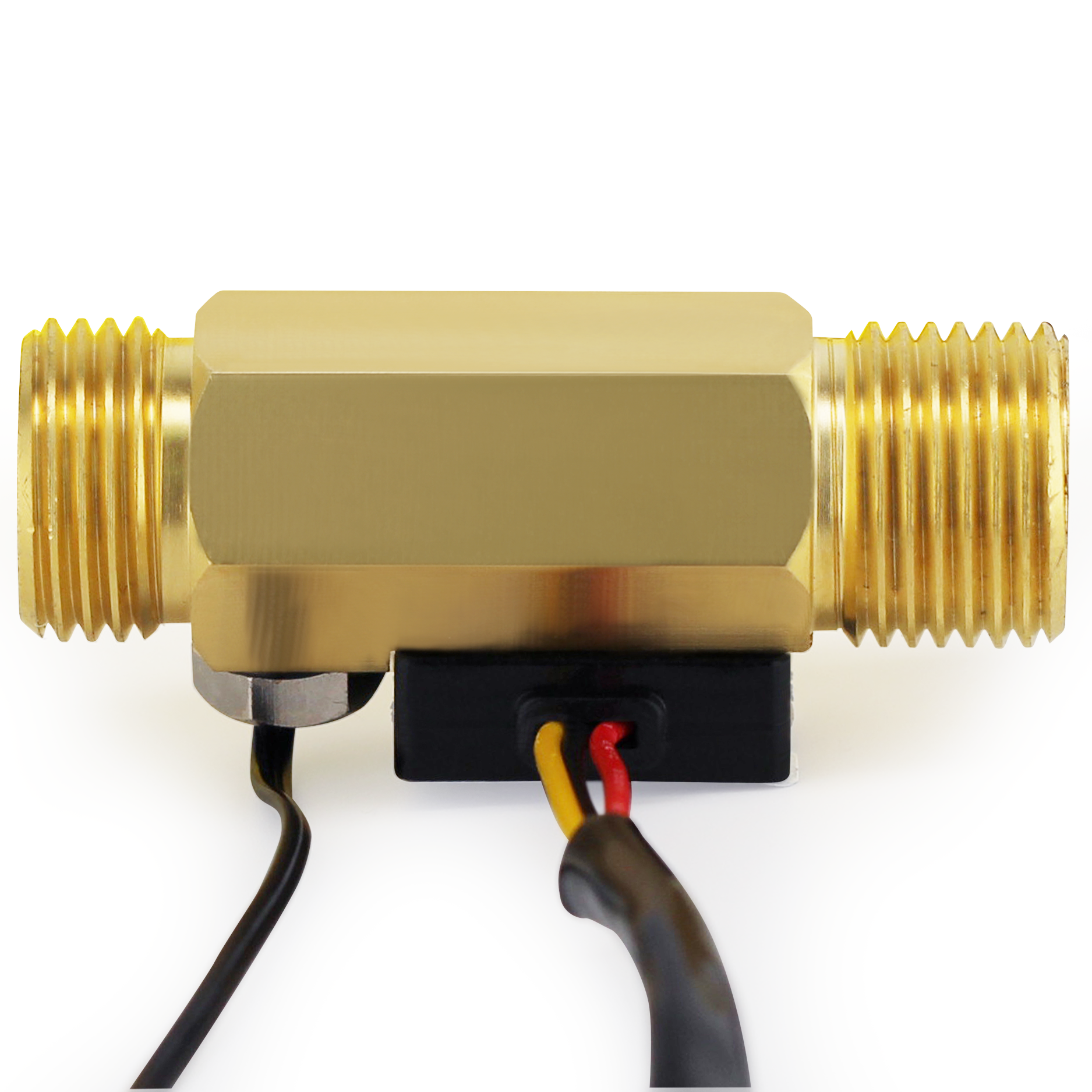

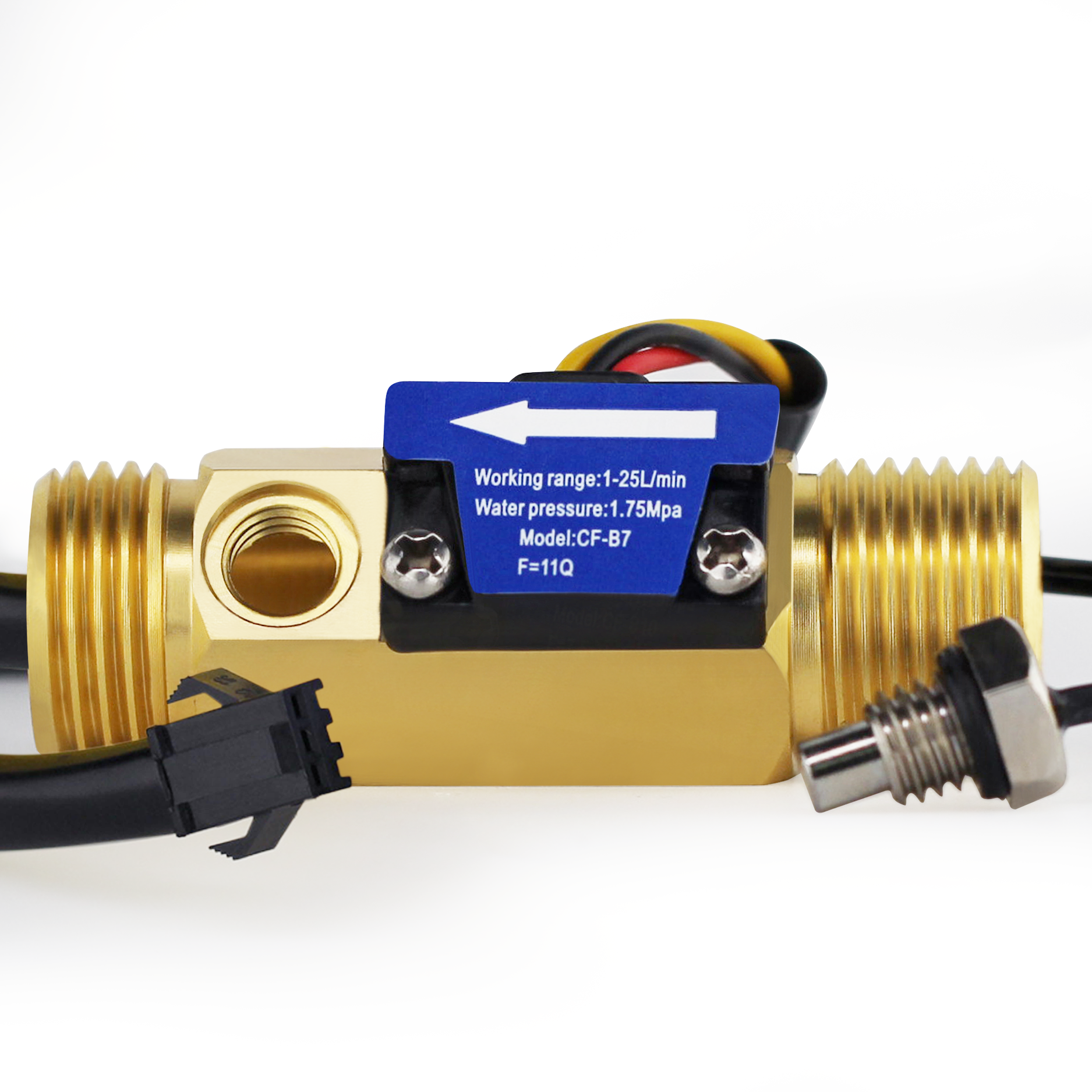

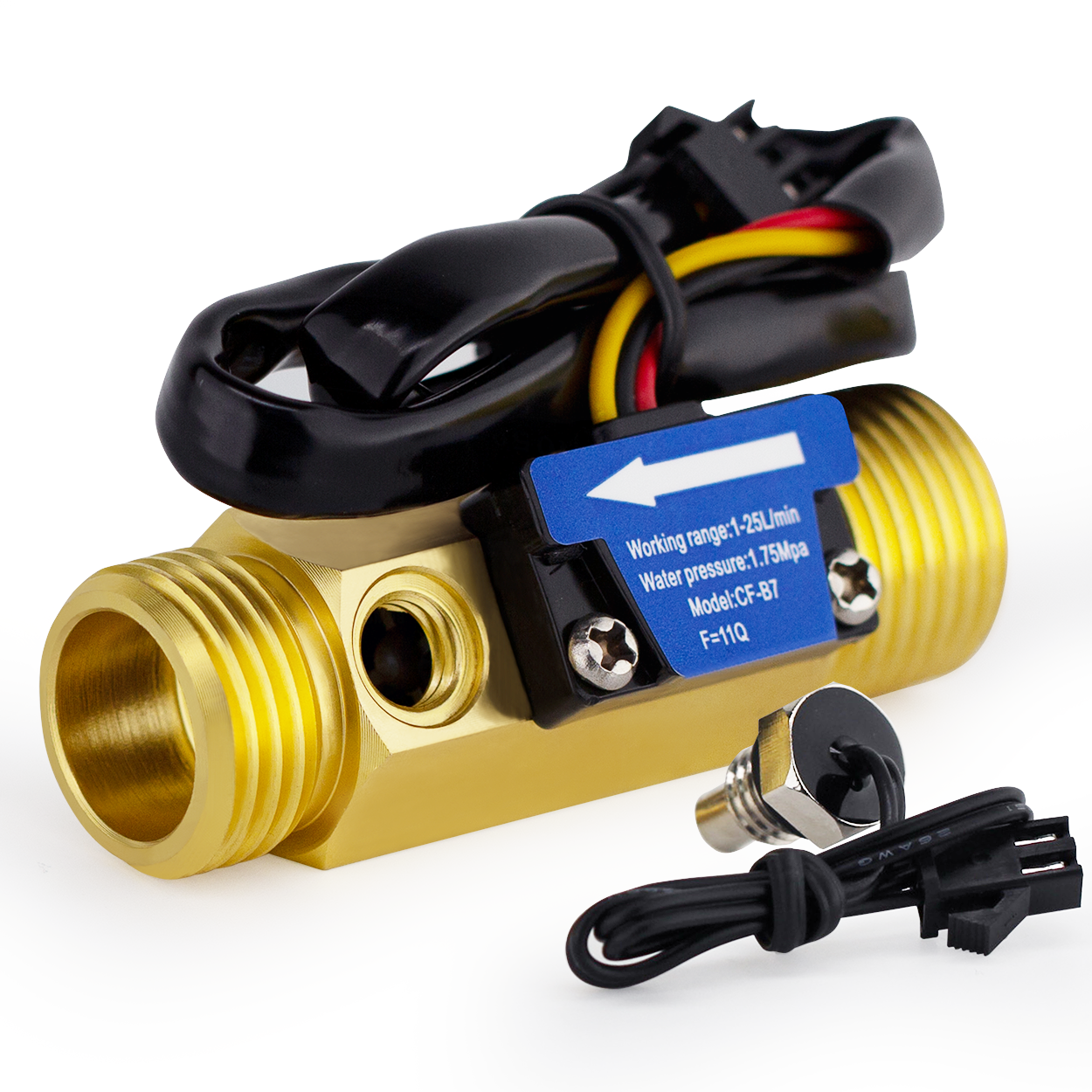

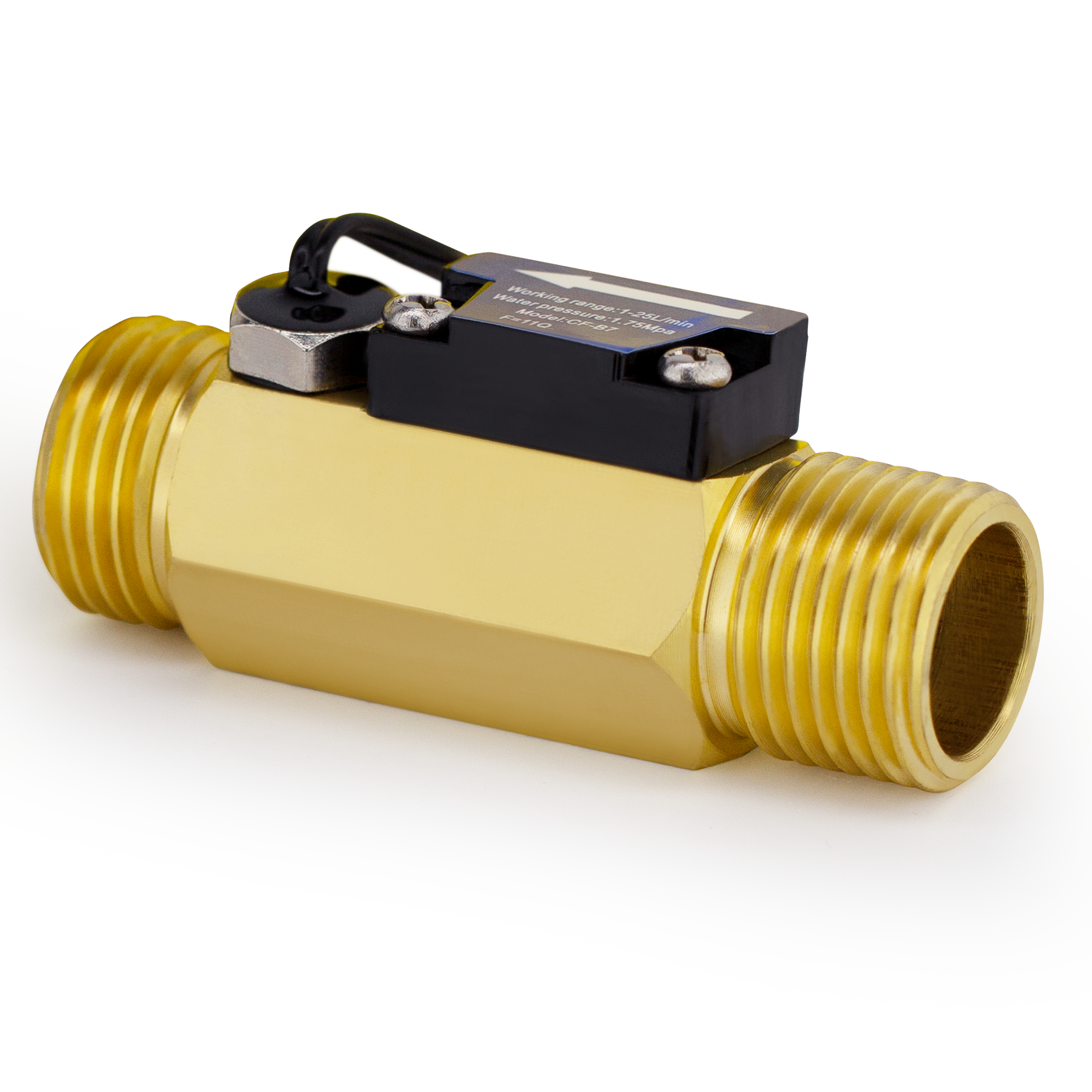

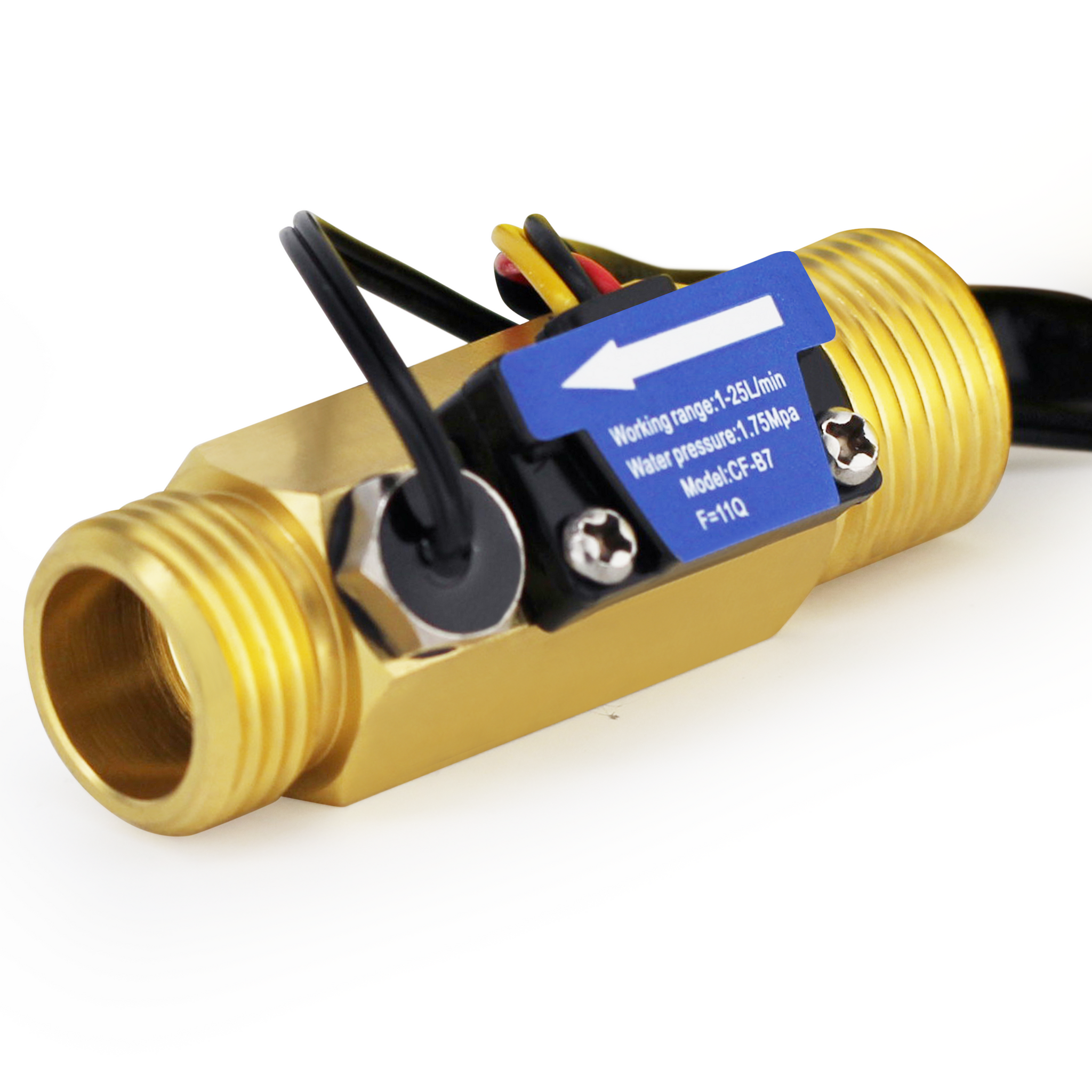

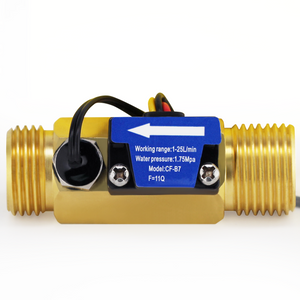

DIGITEN G1/2"Male Thread Water Flow Hall Sensor Switch Flowmeter Counter with Temperature Sensor 1-25L/min
1.This flow sensor is made of brown, it is waterproof,heat resistance,pressurresistance,cold resistance.
2. It is small size and easy to install.
3.Tis flowmeter can measure water temperature with temperature sensor.
4. The flowmeter can be used in a wide range of instruments to measure the flow of fluid in pipes
5. The flow meter is stable and reliable.
6. All materials are in line with ROHS testing standards.
Working range: 1-25L/min
Max water pressure: 1.75Mpa
Working Voltage Range: DC5-15V
Temperature sensor: NTC 3950 R25=50K
Detectionn Range of Temperature Sensor: -20℃~100℃
Temperature Resistance Range: 80℃
Male Thread External Diameter:20.5mm(0.8Inch)
Temperature Sensor Length:16mm(0.63Inch)
Flow meter x 1
We Also Recommend
It looks to be well made, but I can't understand why it ships without the sensor tube, which is required in order to monitor temperature. I had to pay more to order that part separately and am still waiting for it to arrive.
