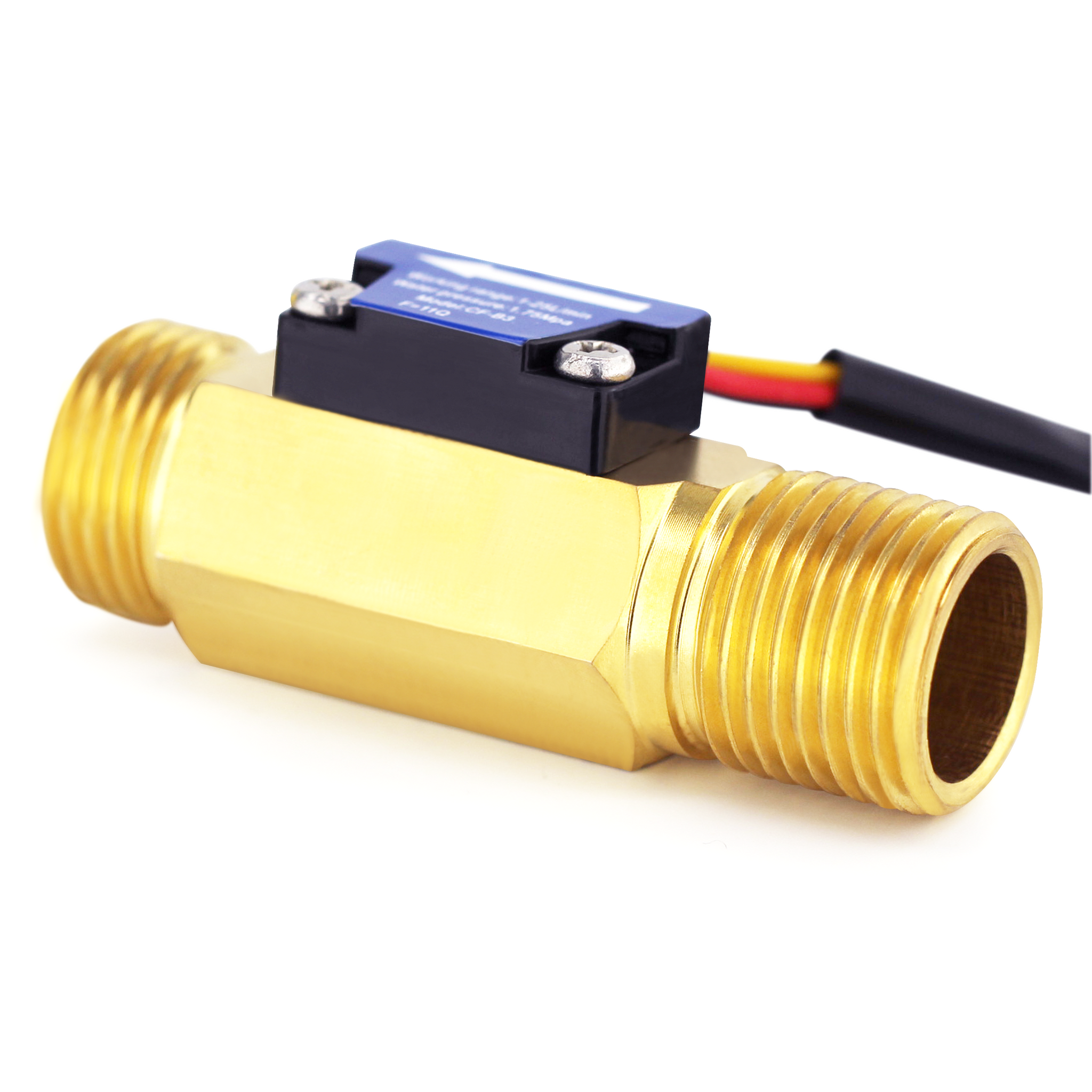

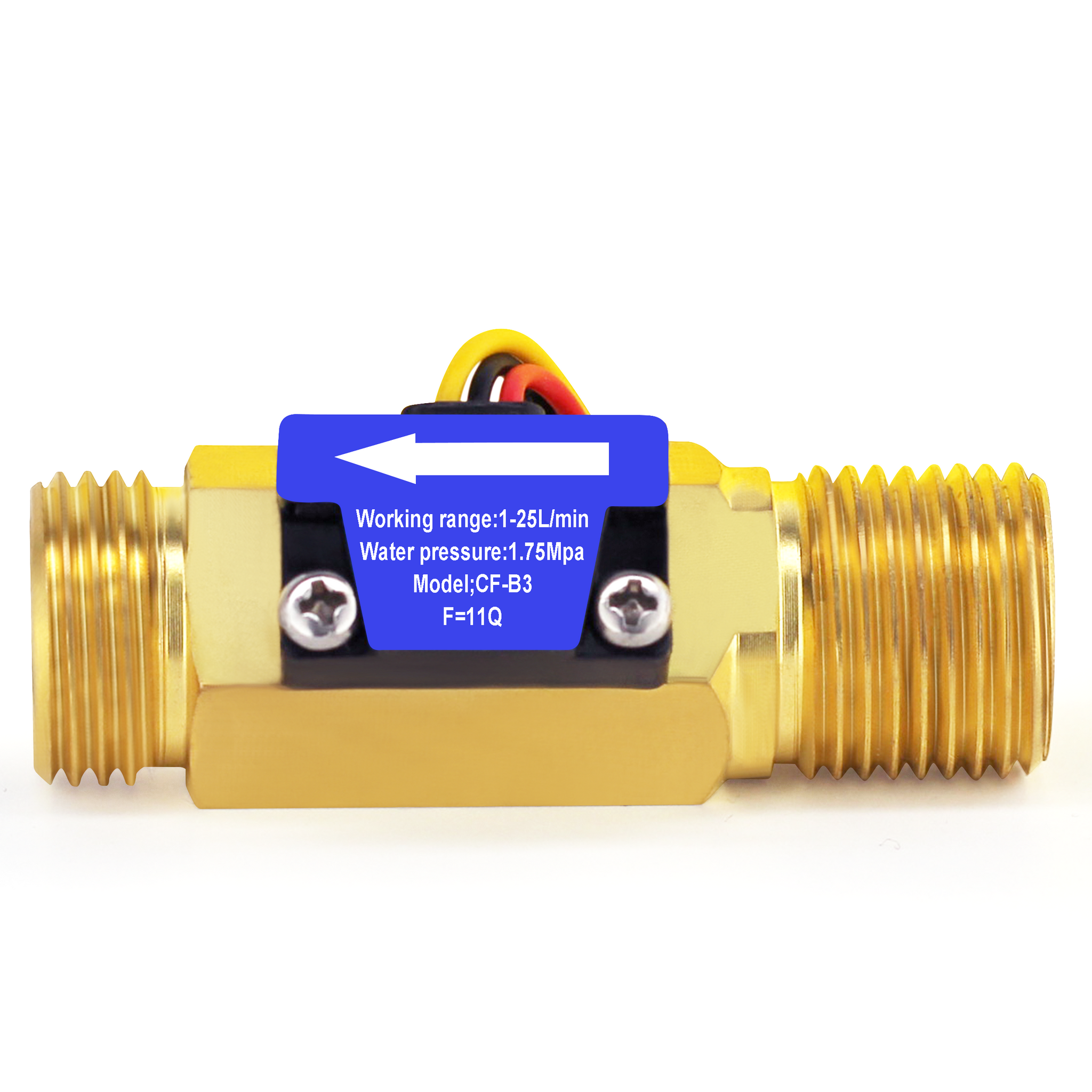

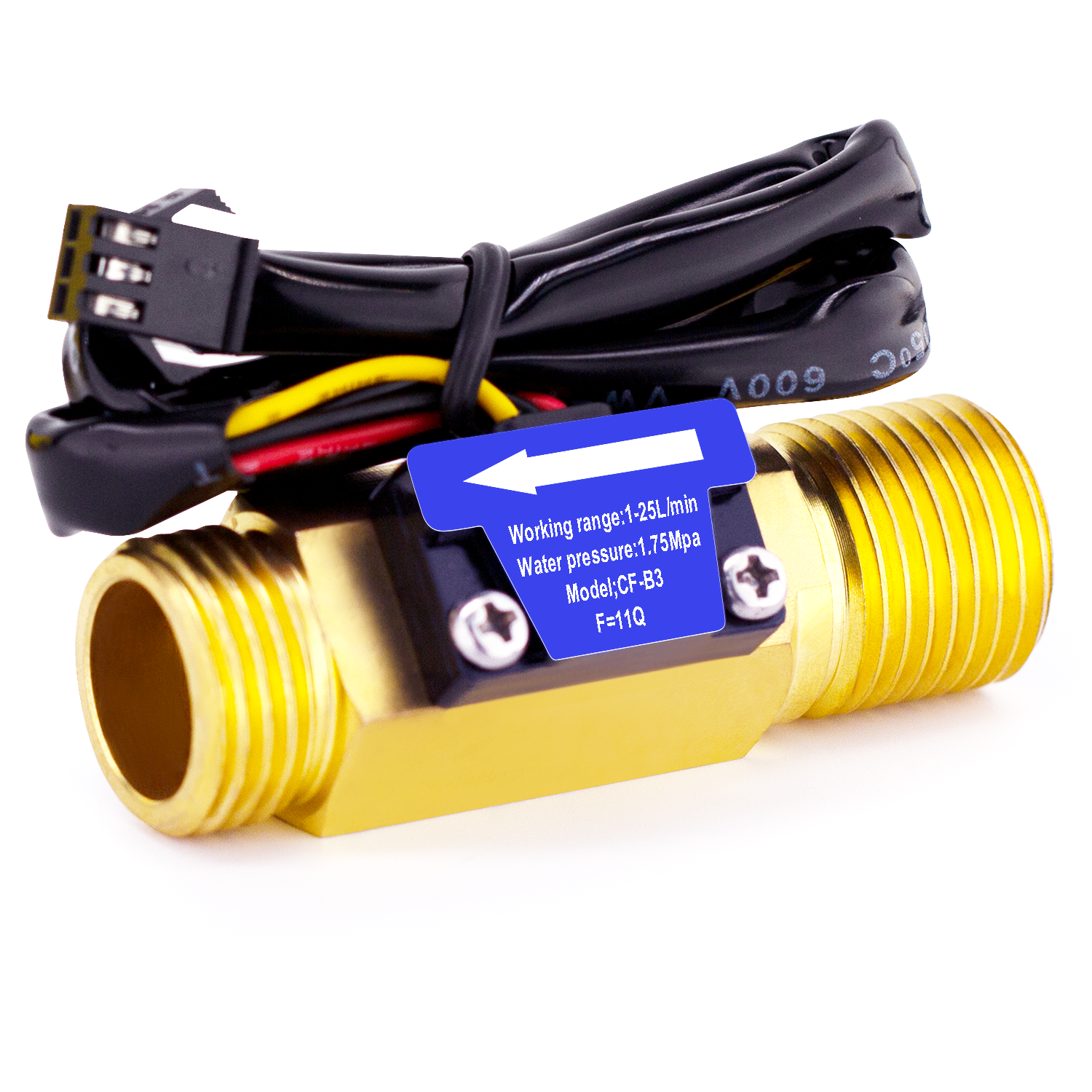

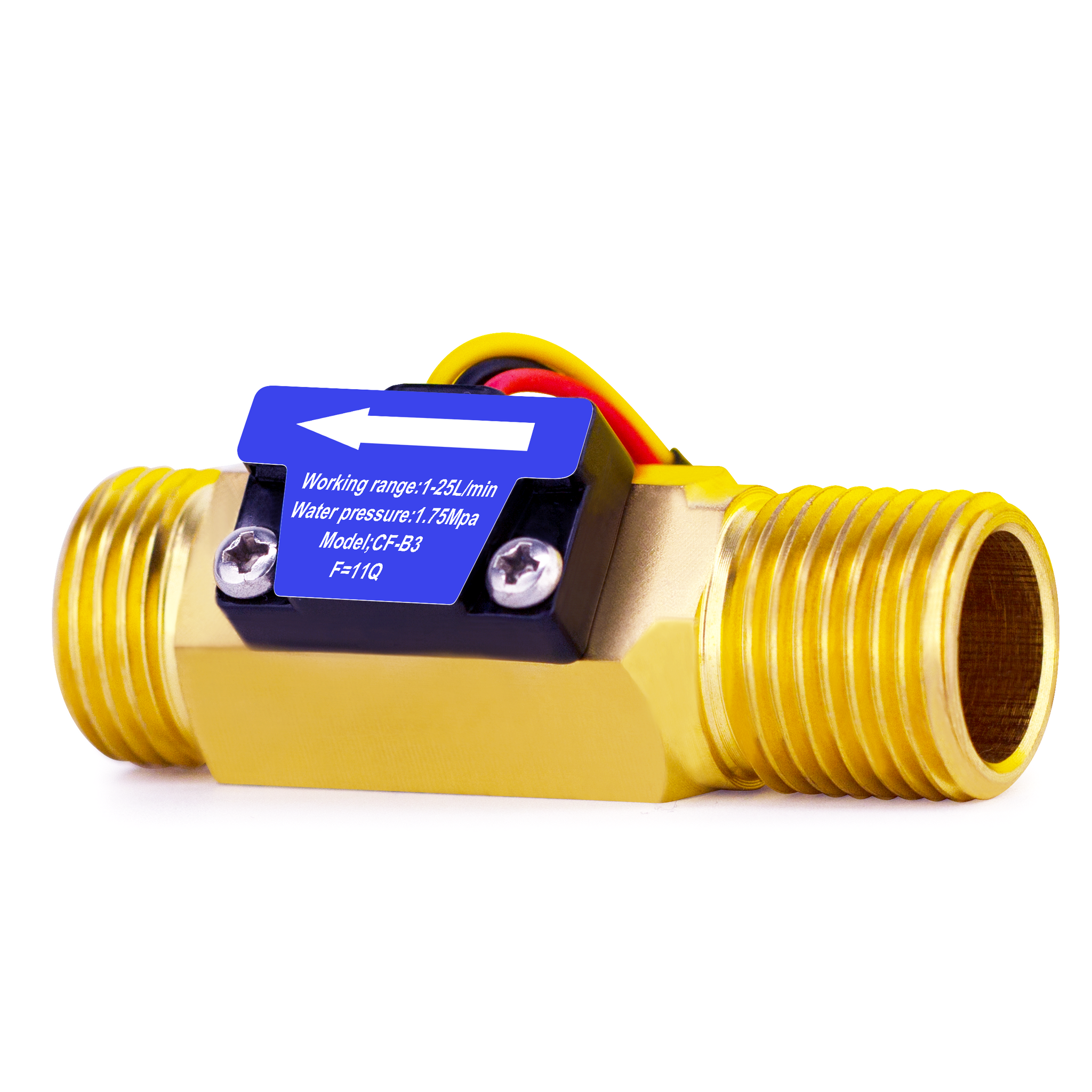

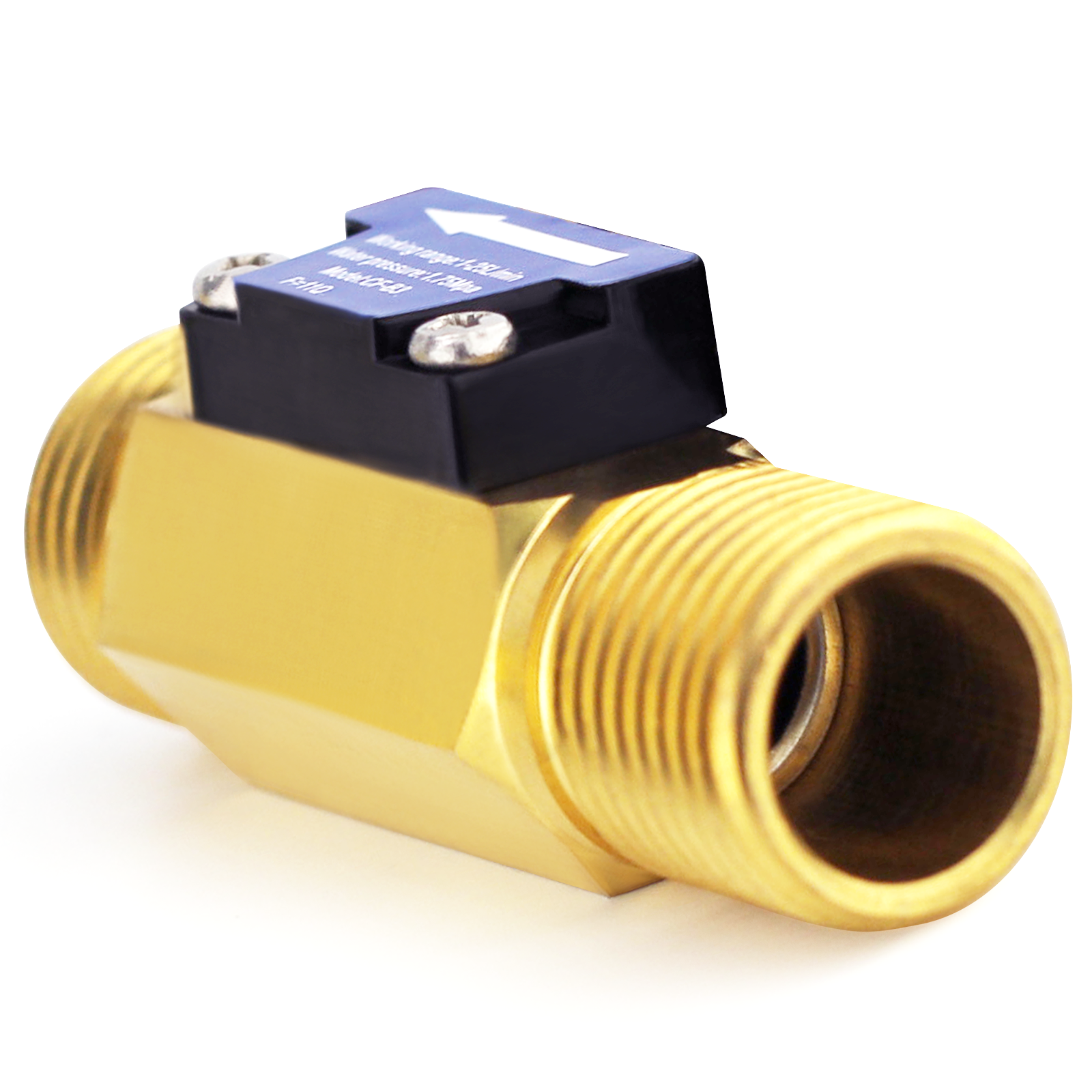

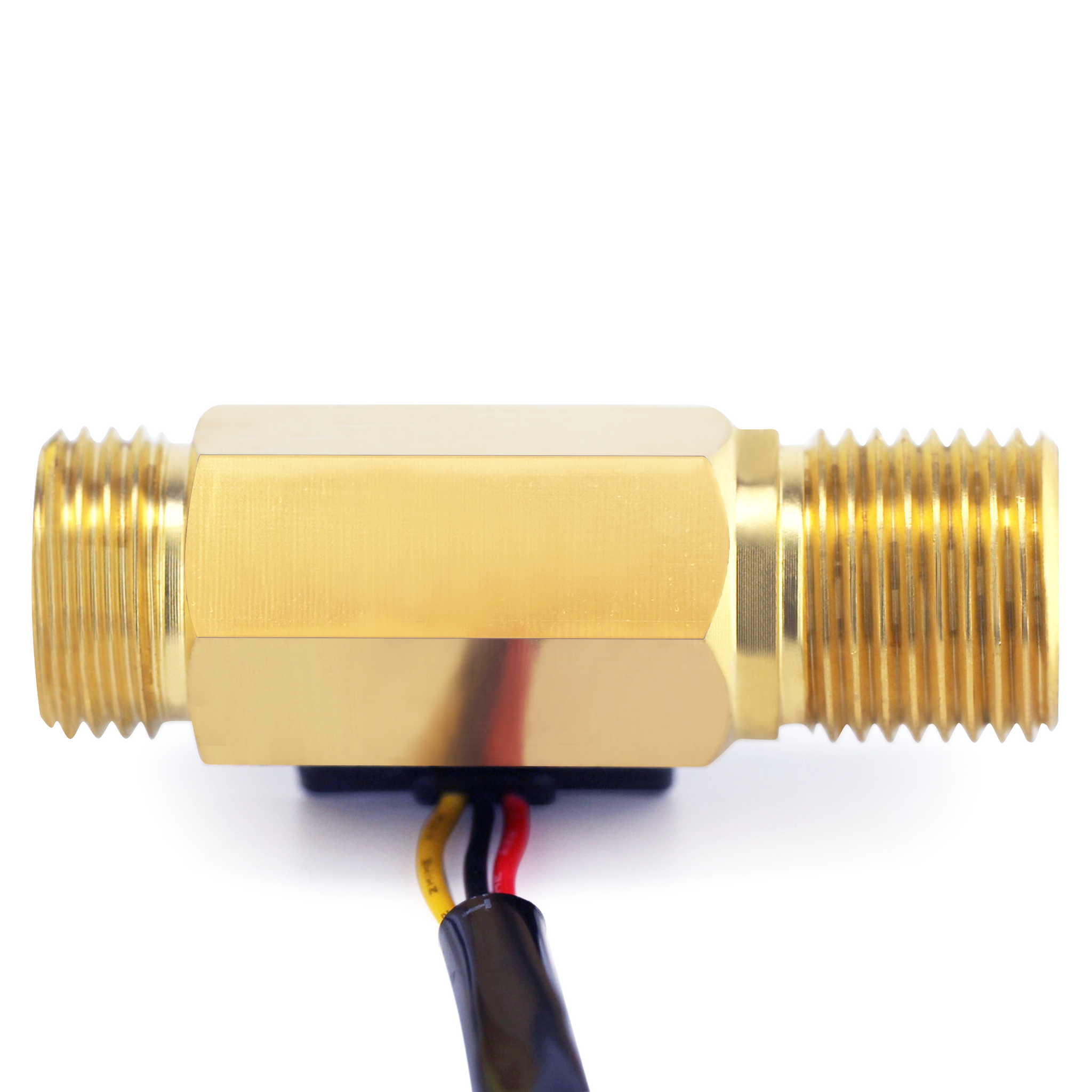

DIGITEN G1/2"Male Thread Water Flow Hall Sensor Switch Flowmeter Counter 1-25L/min
Descriptions:
1.This flow sensor is made of brass, it is waterproof,heat resistance,pressurresistance,cold resistance.
2. It is small size and easy to install.
3. The flowmeter can be used in a wide range of instruments to measure the flow of fluid in pipes
4. The flow meter is stable and reliable.
5. All materials are in line with ROHS testing standards.
Specifications:
Working range: 1-25L/mi
Max water pressure: 1.75Mpa
F=11Q(L/min)
Working Voltage Range: DC5-15V
Accuracy:±3%
Temperature Resistance Range: 80℃
Male Thread External Diameter:20.5mm(0.8Inch)
Tube Length:65mm(2.56Inch)
Cable Length:30cm(11.81Inch)
Size:65mm*30mm*28mm(L*W*H)
Package Include:
Flow meter x 1
