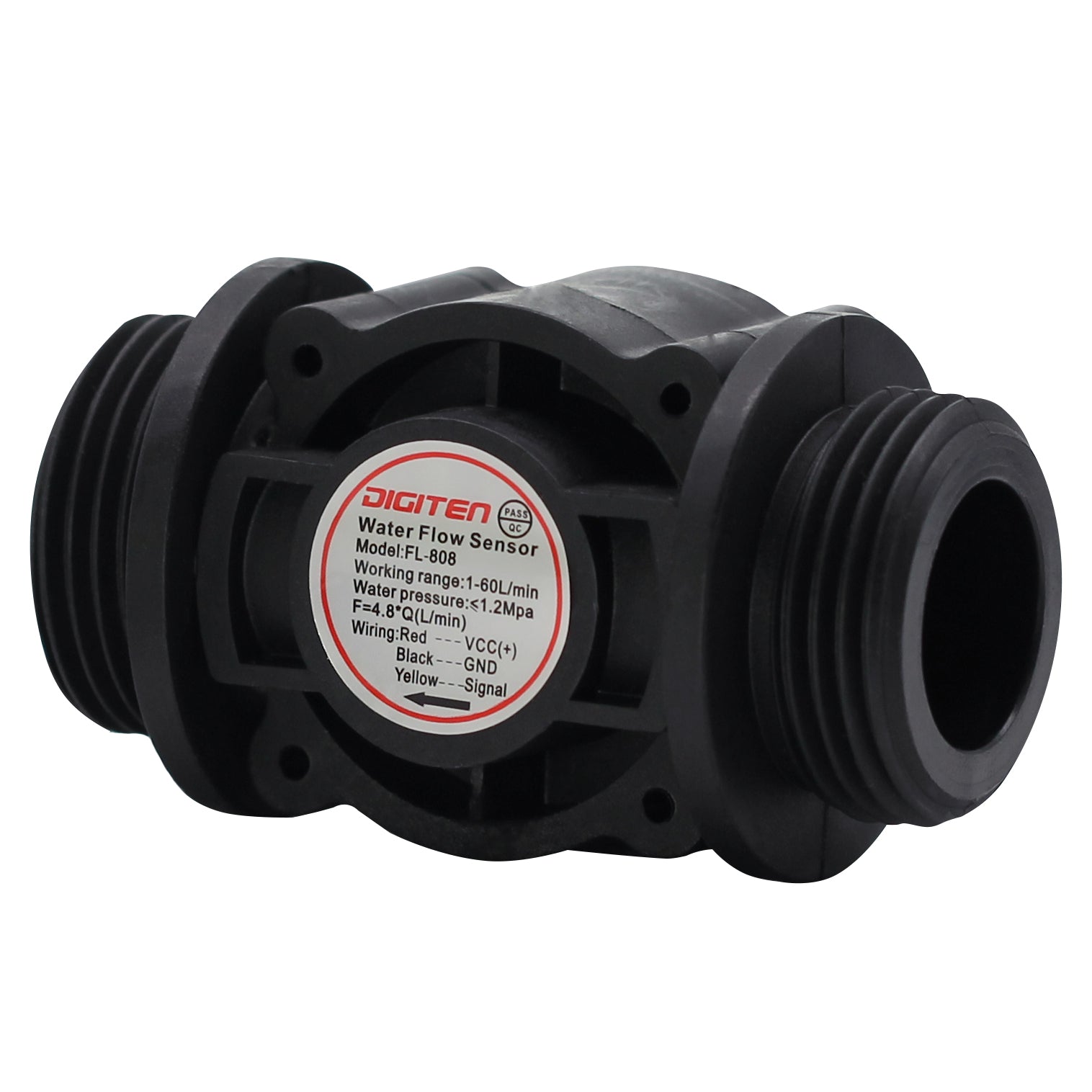

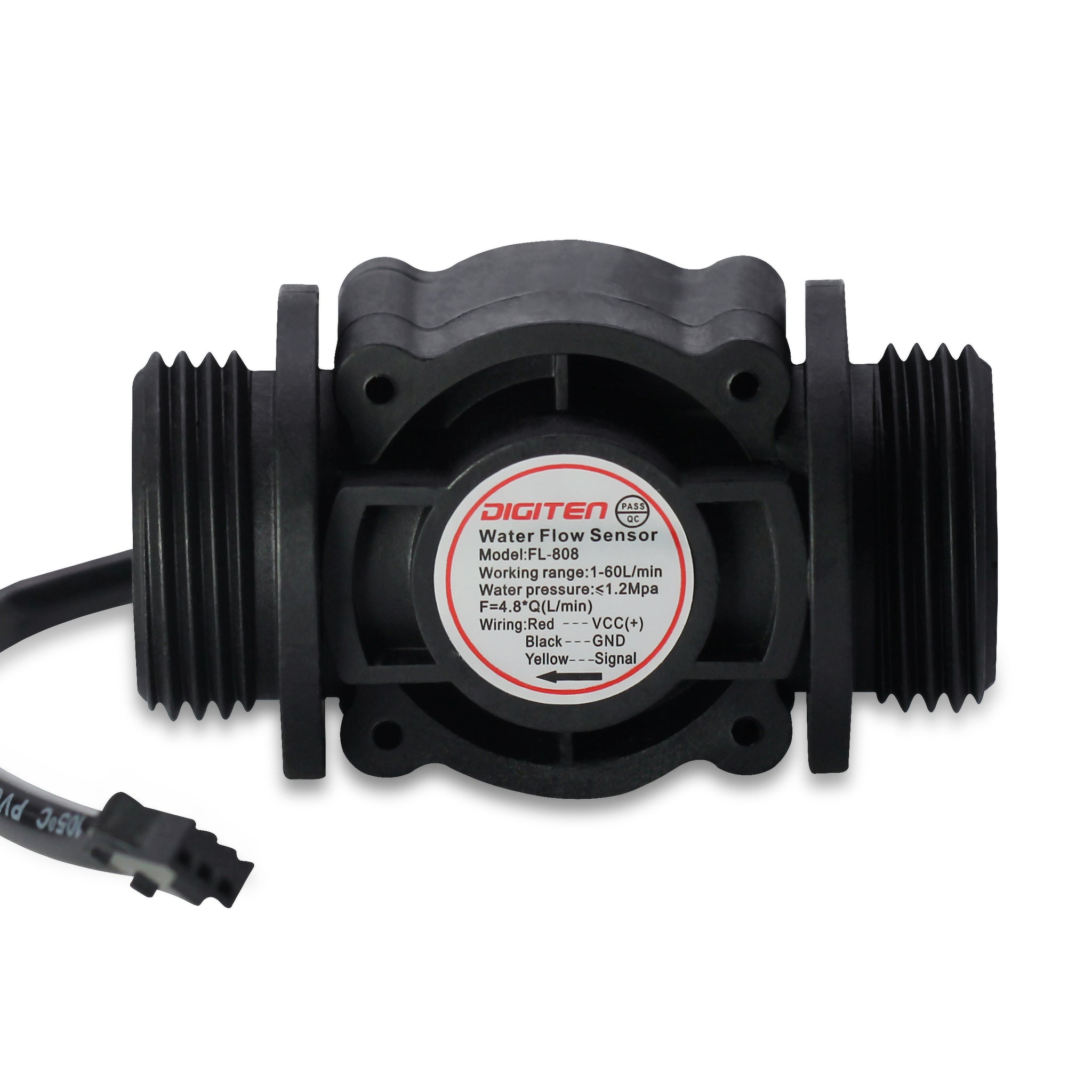

DIGITEN G1" Water Flow Hall Effect Sensor Switch Flow Meter 1-60L/min

  • $9.89
Shipping calculated at checkout.


Waterproof,Heat resistance,pressure resistance,cold resistance.
Easy to install.
Frequency: F=4.8 * Q (L / Min) error:± 2% voltage :3.5-24VDC, current can not exceed 10mA, 450 output pulses/liters, F=constant * units of flow (L / min) * time (seconds).
Flow range:1-60L/min
Maximum current:15 mA(DC 5V)
Working voltage range:DC 5-24 V
Load capacity:10 mA(DC 5V)
Operating Temp:80,Operating humidity:35%-90%RH
Allow compression:Water pressure 1.75 Mpa below
Insulation resistance:>100M OHM
Storage Temperature: -25-80℃
Storage humidity:25%-95%RH
Output Waveform:Square Wave,output pulse signal.
ROHS Compliant.
Cable length:15cm.


Packaging include
G1" Flowmeter x 1


We Also Recommend


Customer Reviews

Based on 4 reviews
50%
(2)
50%
(2)
0%
(0)
0%
(0)
0%
(0)
f
f.
DIGITEN G1” FLOW SENSOR limits water flow!

This 1” flow sensor limits water flow substantially unlike those with the flow propeller shaft in parallel with pipe length & centered pointing parallel with water flow!

The G1-1/2 & G2” DIGITEN flow sensor turns perpendicular to the water flow, shaft is parallel to water flow, least resistance to water flow, recommended.

c
c.
Works well. Good price.

I bought this sensor as an Arduino input to control my home's water pump. So far so good.

W
W.
Works fine but restricts the flow

Excellent for the price, but it it has its limitations. As other reviewers wrote, it restricts the flow. I wouldn't want to use it if a water line larger than 1/2 inch is needed. Calibration appears to be within about 5% from 0.5 gpm to 4 gpm. Below 0.5 gpm calibration falls off quickly. I showed an 18% error at 0.38 gpm. I didn't test it above 4.28 gpm which is all I got through my 1/2" hose.

L
L.S.
works well for my application

It works well for my application.
I set up a solar water heater for my pool controlled by a Raspberry Pi. I am using it to provide relative flow rates while making minor adjustments to the actuator/valve, so I can provide a variable flow that is always a constatnt temperature higher than my pool temp.
Not sure how accurate it is, but I do know that the value of 450 pulses/liter for the 1" as stated in the ad is not correct . If F=4.8 * L/M, then pulses/liter should be 4.8*60 or 288 which is the value that I am using, but I still suspect it is too high. Will have to write some code to allow me to calibrate it.
Had it in my system for about a month now, no complaints
Update 6/4/2018.
After adding 2 more solar panels, I am getting a max flow rate of 45 liters/min. Still running fine. but does deveop a louder hum at the higher flow rates. In addition at this increased flow rate I believe that it may have become a bottleneck considering the pump size that I am using to pump the water up around 25 feet to the solar panel.
