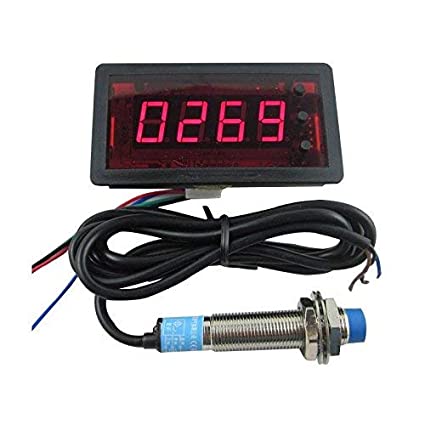

DIGITEN DC12V 4Digit Red LED Counter Meter with Relay Output+Proximity Switch Sensor NPN

DIGITEN

  • $20.99
    Unit price per
Shipping calculated at checkout.


Features
When count to the quantity that you set.the counter will send signal(ON/OFF) from relay,and the quantity of counter will reset clear automatically.
High-speed IC,bright red LED,easy to install.
Good stability, strong Anti-interference.
Counting value be retained when power failure.
Widely use in Automatic Burden System,Winding Machine,packaging machinery,textile machinery,ect.
The meter retain the number automatically when power cut off.

Specifications
Working voltage:DC12V
DC Current<15mA
Relay function current<70mA
Sign:Pusle signal,NPN 3 wires normally open
trigger mode: rising edge
Display dimension: 0.56" Green LED
Reset signal:Pulse or switch
Counting:Plus or minus
Response frequency: 100HZ
Display range:0-9999
Panel cutout dimension:76.5mm*39.2mm
Overall dimension:79mm*43mm*30.5mm

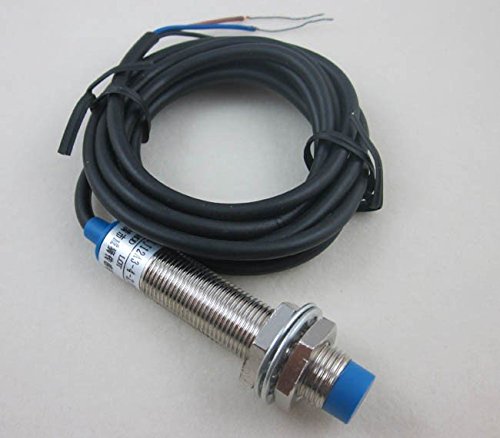

Sensor dimention:M12x60mm.
Detection distance: 4mm
Sensor wiring:brown-Power+;blue-Power-;black-signal.
Operating temperature: 0 to 50°C.

Packaging include
4 Digit Red counter with relay x 1
NPN proximity sensor x 1
4 wires cable x 1
Instruction x 1
