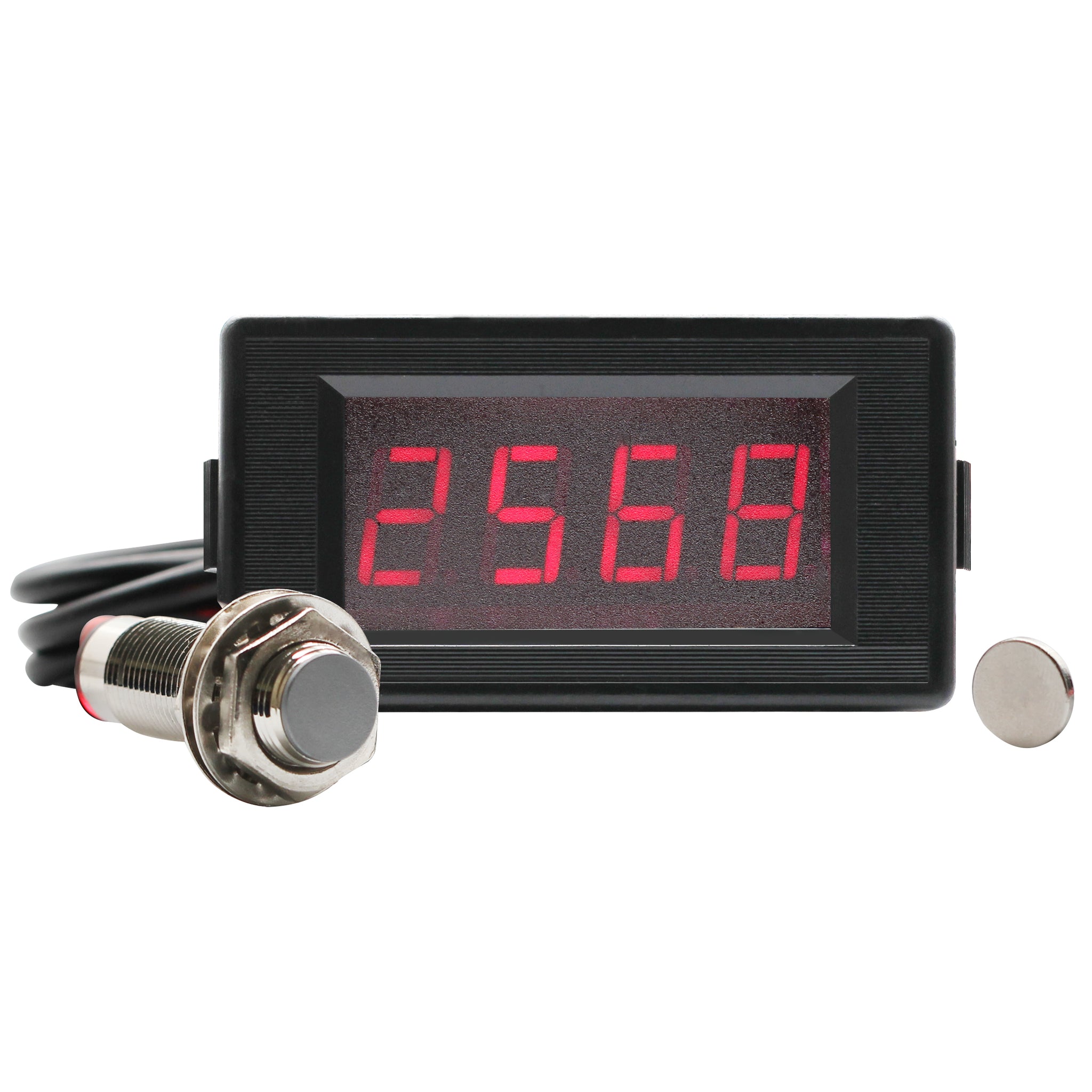

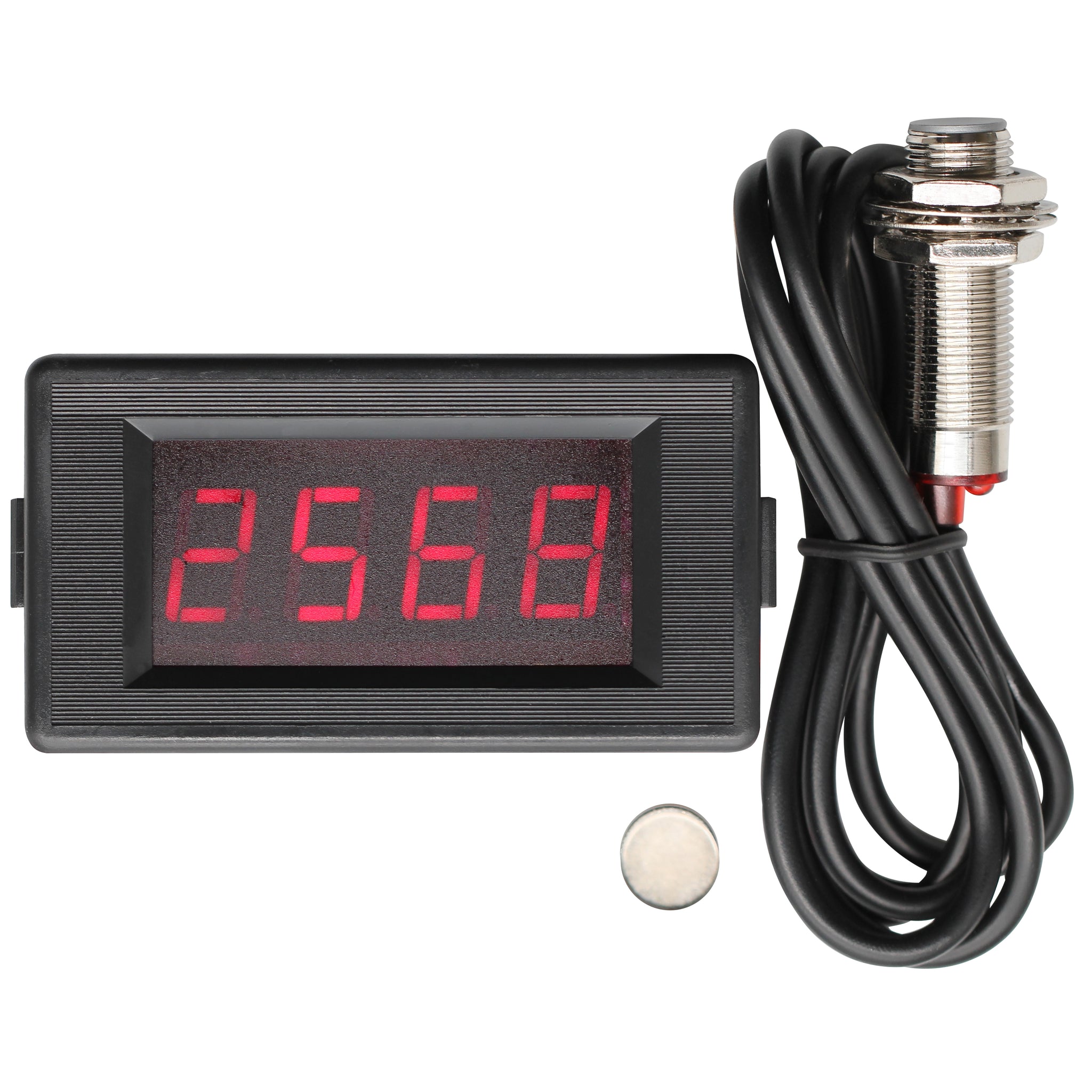

DIGITEN DC 12V 4 Digital Red LED Counter Meter Up Down+Hall Proximity Switch Sensor NPN
Features
High-speed IC,bright red LED,easy to install.
Good stability, strong Anti-interference.
Counting value be retained when power failure.
Widely use in Automatic Burden System,Winding Machine,packaging machinery,textile machinery,ect.
The meter retain the number automatically when power cut off.
Specifications:
Power supply:DC12V
DC Current:30mA
Sign:Pusle signal,NPN 3 wires normally closed
trigger mode: rising edge
Display dimension: 0.56" RED
Reset signal:Pulse or switch
Counting:Plus or minus
Response frequency: 100HZ
Display range:0-9999
Panel cutout dimension:76.5mm*39.2mm

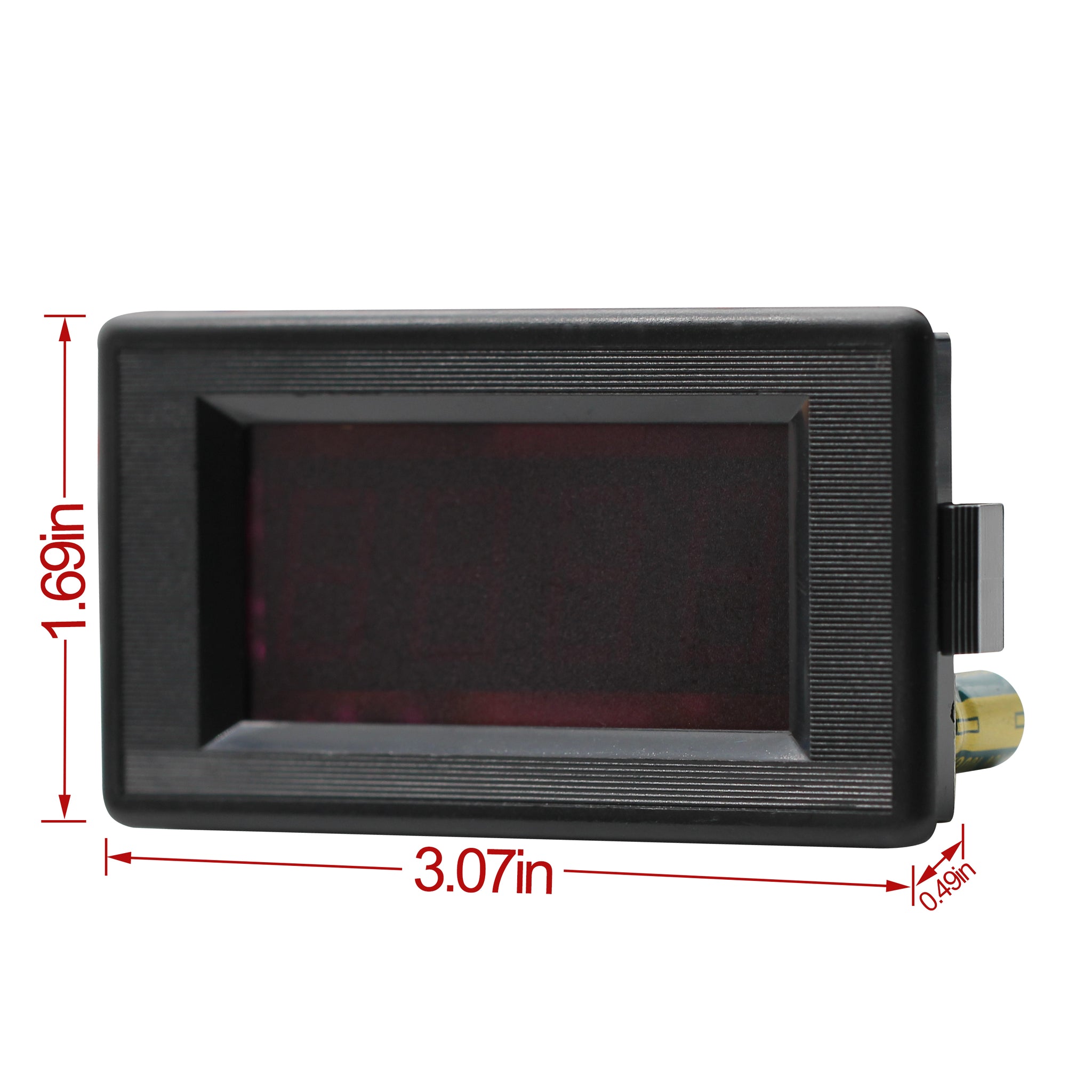

Overall dimension: 79mm*43mm*30.5mm

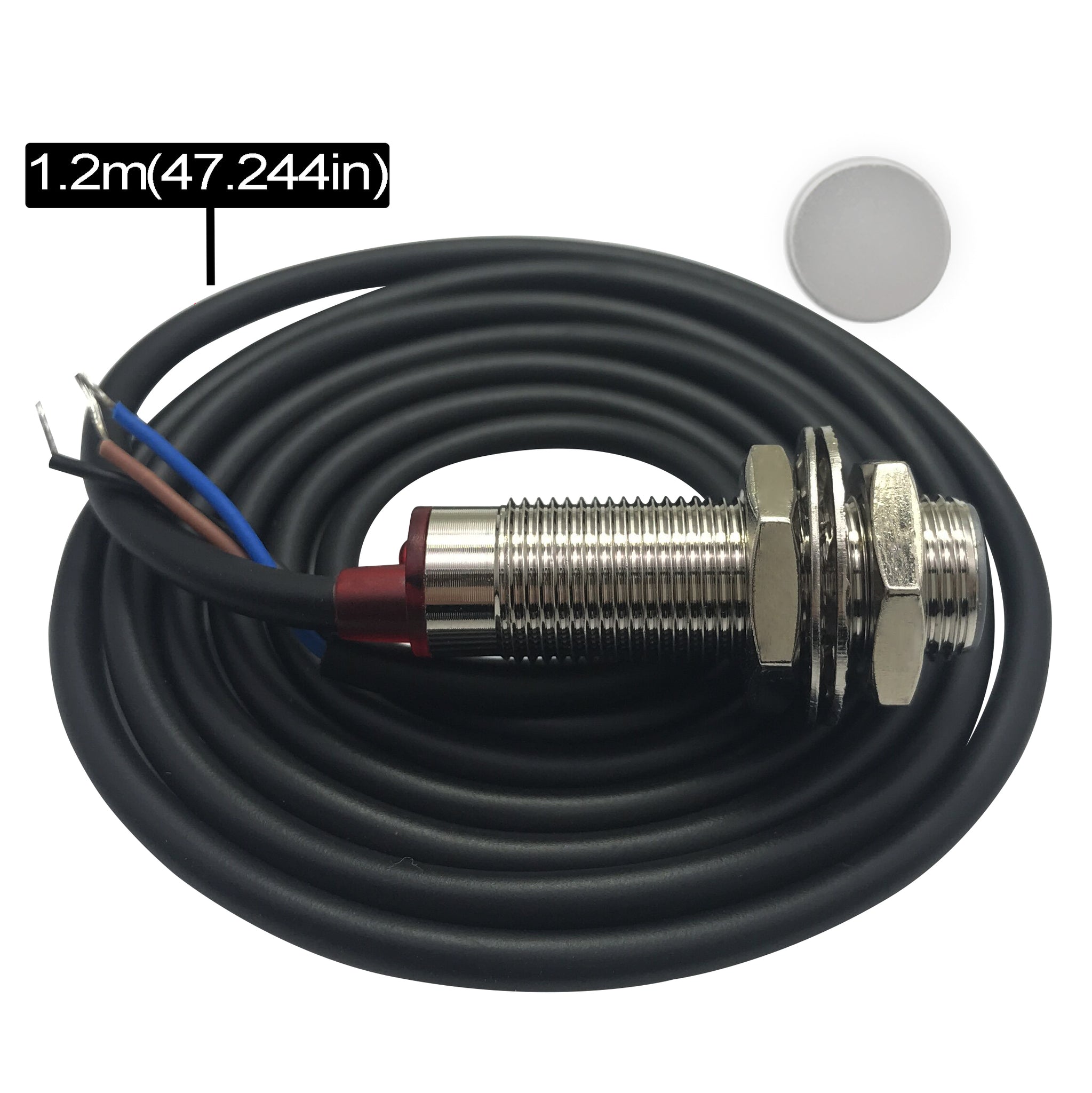

Sensor dimention: M12x37mm.
Detection range: 10mm

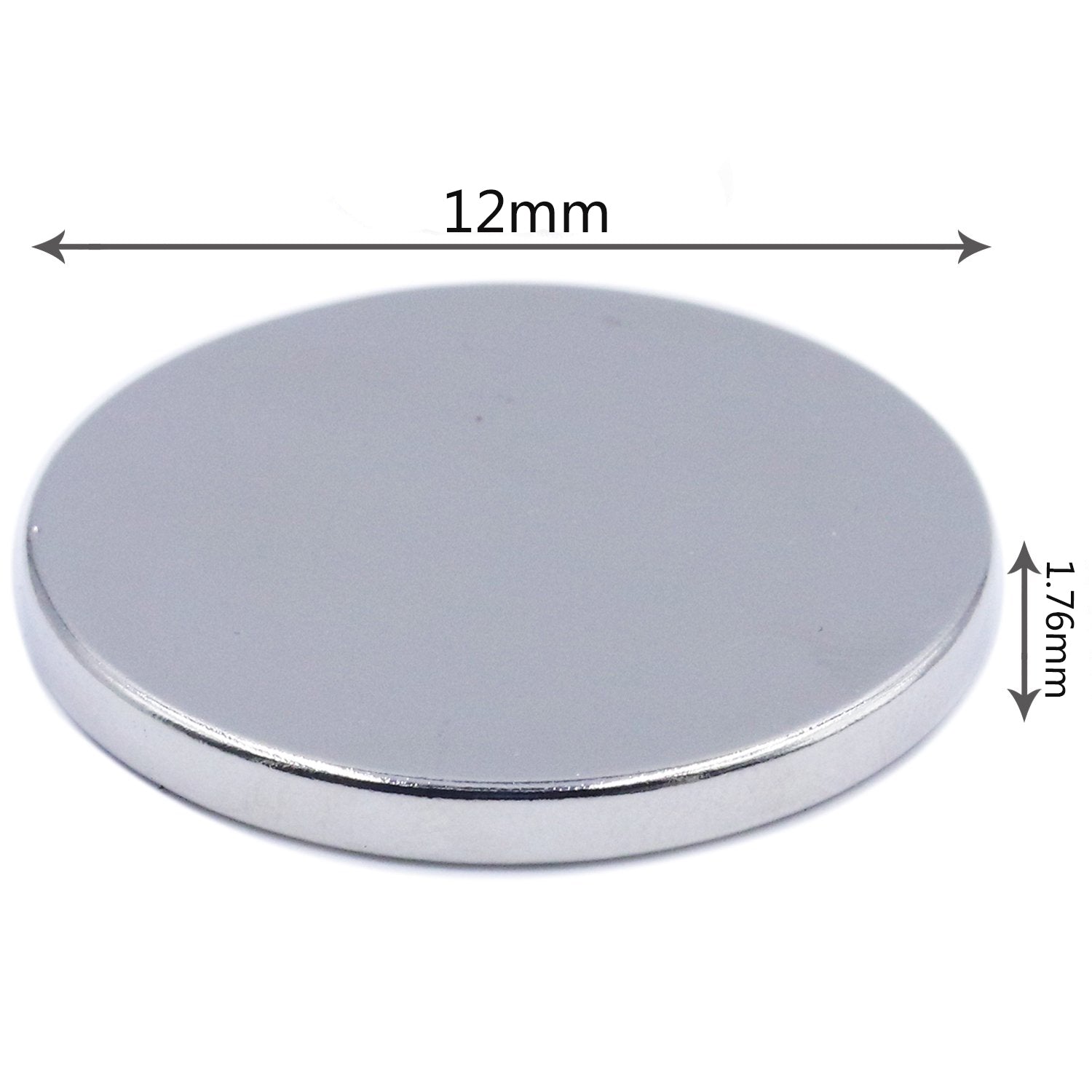

Detected objects: magnet
Sensor appearance:M12mm cylinder.
Sensor wiring:brown---Power+;blue---Power-;black---signal.
Operating temperature: 0 to 50¡ãC.

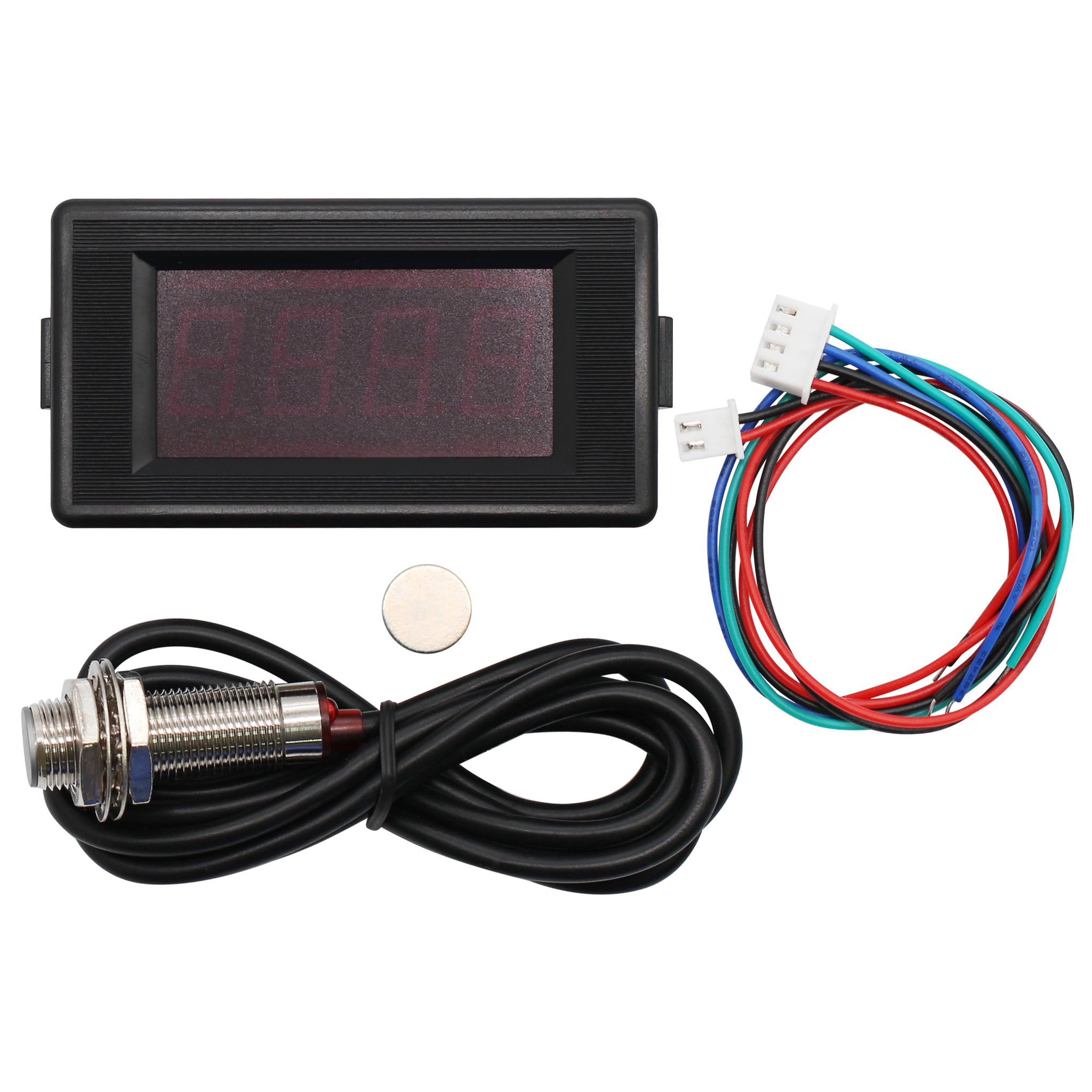

Packaging include
4 Digit red counter x 1
Hall proximity sensor x 1(come with magnet)
4 wires cable x 1
2 wires cable x 1
Instruction x 1
