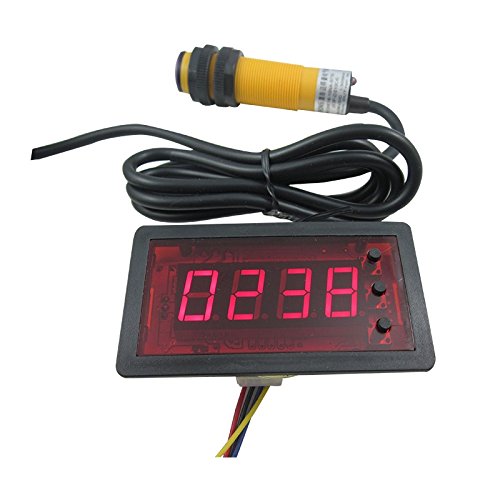

DIGITEN 12V 4 Digit Red Counter Meter+Infrared Proximity Photoelectric Switch Sensor NPN
Infrared photoelectric switch sensor:NPN 3 wires normally open,NO,6-36VDC
trigger mode: rising edge
Display dimension: 0.56" RED
Reset signal:Pulse or switch
Counting:Plus or minus
Response frequency: 100HZ
Panel cutout dimension:76.5mm*39.2mm
Overall dimension: 79mm*43mm*30.5mm
Sensor dimention: M18x70mm.
Detection distance: 10mm
Sensor cable length:1200mm
The meter retain the number automatically when power cut off.
Sensor wiring:brown---Power+; blue---Power-;black---signal.
Operating temperature: 0 to 50¡ãC.
4 Digit red counter x 1
IR proximity sensor x 1
4 wires cable x 1
2 wires cable x 1
Instruction x 1
