DIGITEN 24V-36V 6-Digit 0-999999 LED Display Digital UP Counter+Hall NPN Proximity Sensor Switch+Holder
HMC11 series electronic accumulative counter, adopts low power integrated circuit, high bright LED Display with clear appearance. It has power off memory without machine damage, durable enough. It is widely used to production line counting, flow counting, rotation counting, length counting, times counting and such occasions.
Specification
Power supply: 24-36VDC
Power consumption: Approx.10W
Range: 0-999999
Counting speed: 10 times/s

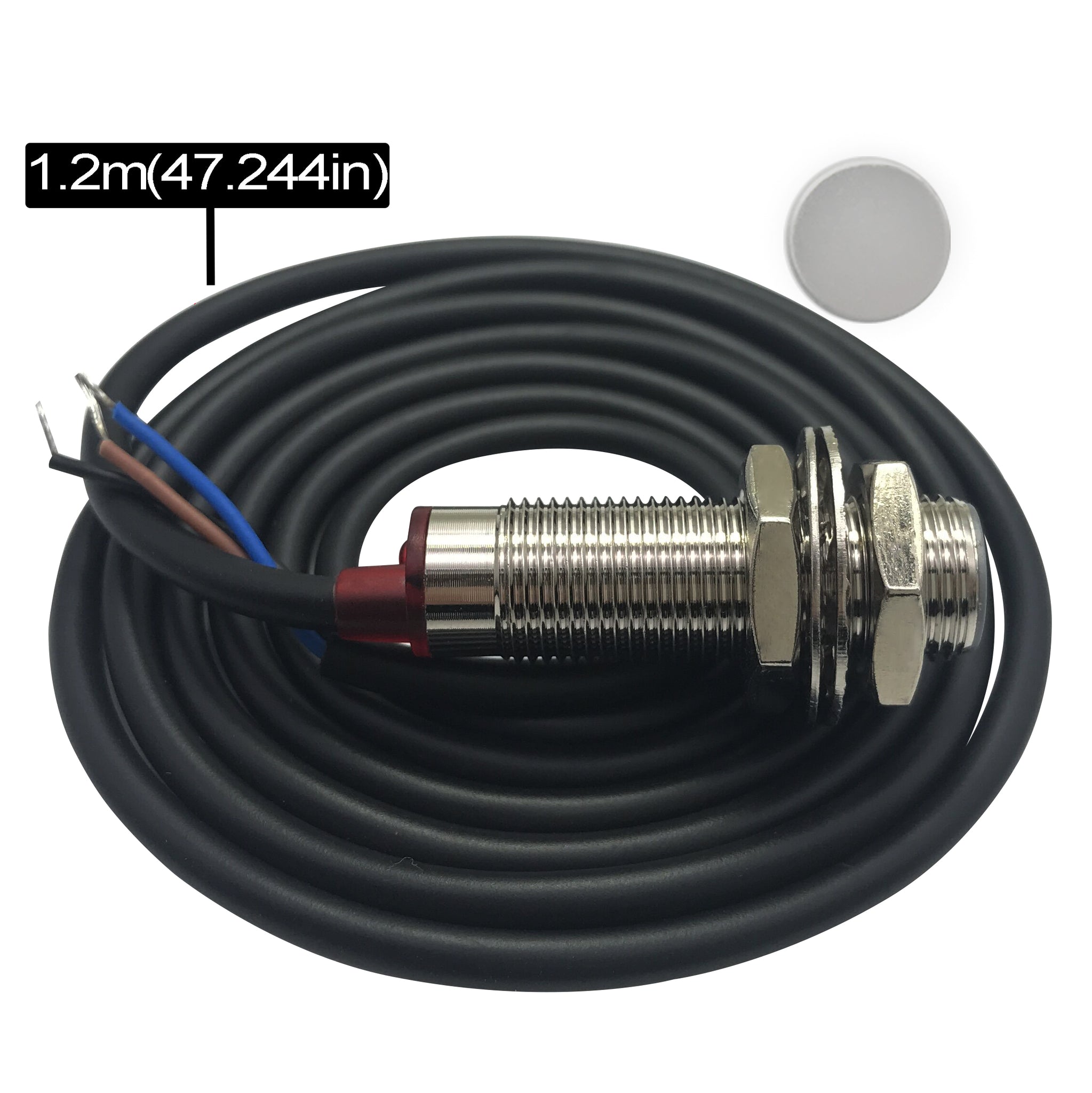

Hall sensor: Pusle signal,NPN 3 wires normally closed, Lenth is 1.2m
Reset time: 0.5s
Reset method: Panel button,manual
Detection range: 10mm
Detected objects: magnet

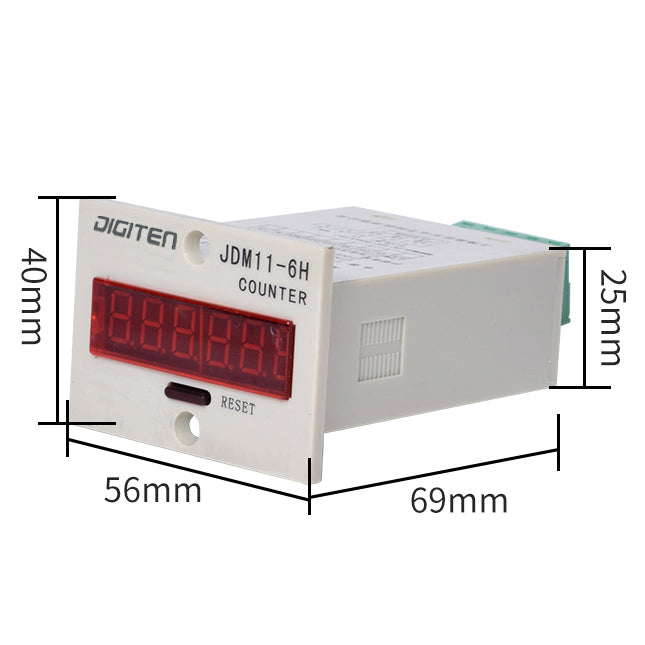

Cutting size: 38.5x27.5mm
Working temp: 0-50C
Data storage: 10 years
Power wire length: 1.2m

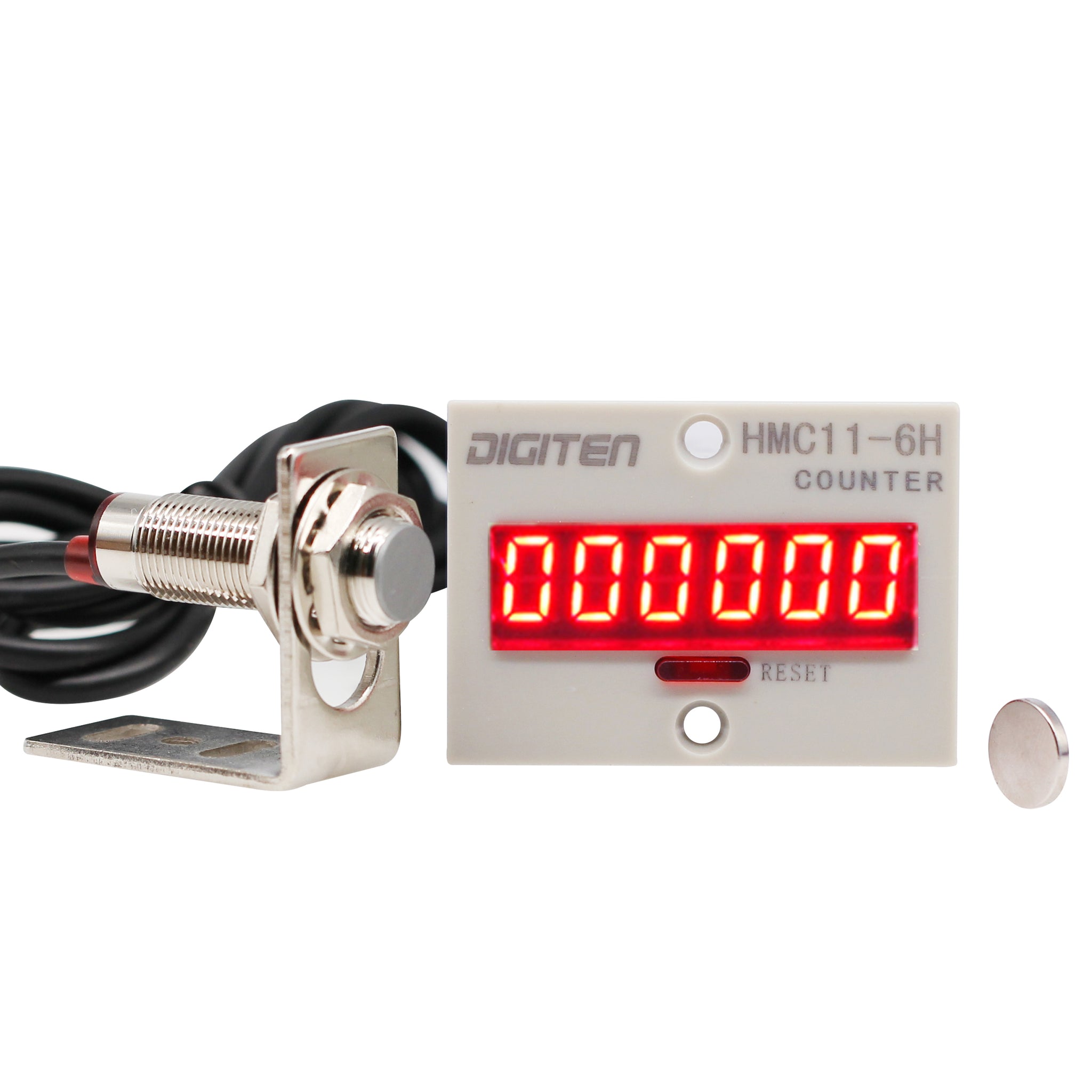

Packaging list
1 x HMC-6H counter
1 x Hall sensor
1 x Sensor holder
Specification
Power supply: 24-36VDC
Power consumption: Approx.10W
Range: 0-999999
Counting speed: 10 times/s
Hall sensor: Pusle signal,NPN 3 wires normally closed, Lenth is 1.2m
Reset time: 0.5s
Reset method: Panel button,manual
Detection range: 10mm
Detected objects: magnet
Cutting size: 38.5x27.5mm
Working temp: 0-50C
Data storage: 10 years
Power wire length: 1.2m
Packaging list
1 x HMC-6H counter
1 x Hall sensor
1 x Sensor holder
